Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1985
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Adapter Kit
>>
Lighting System
Lighting System

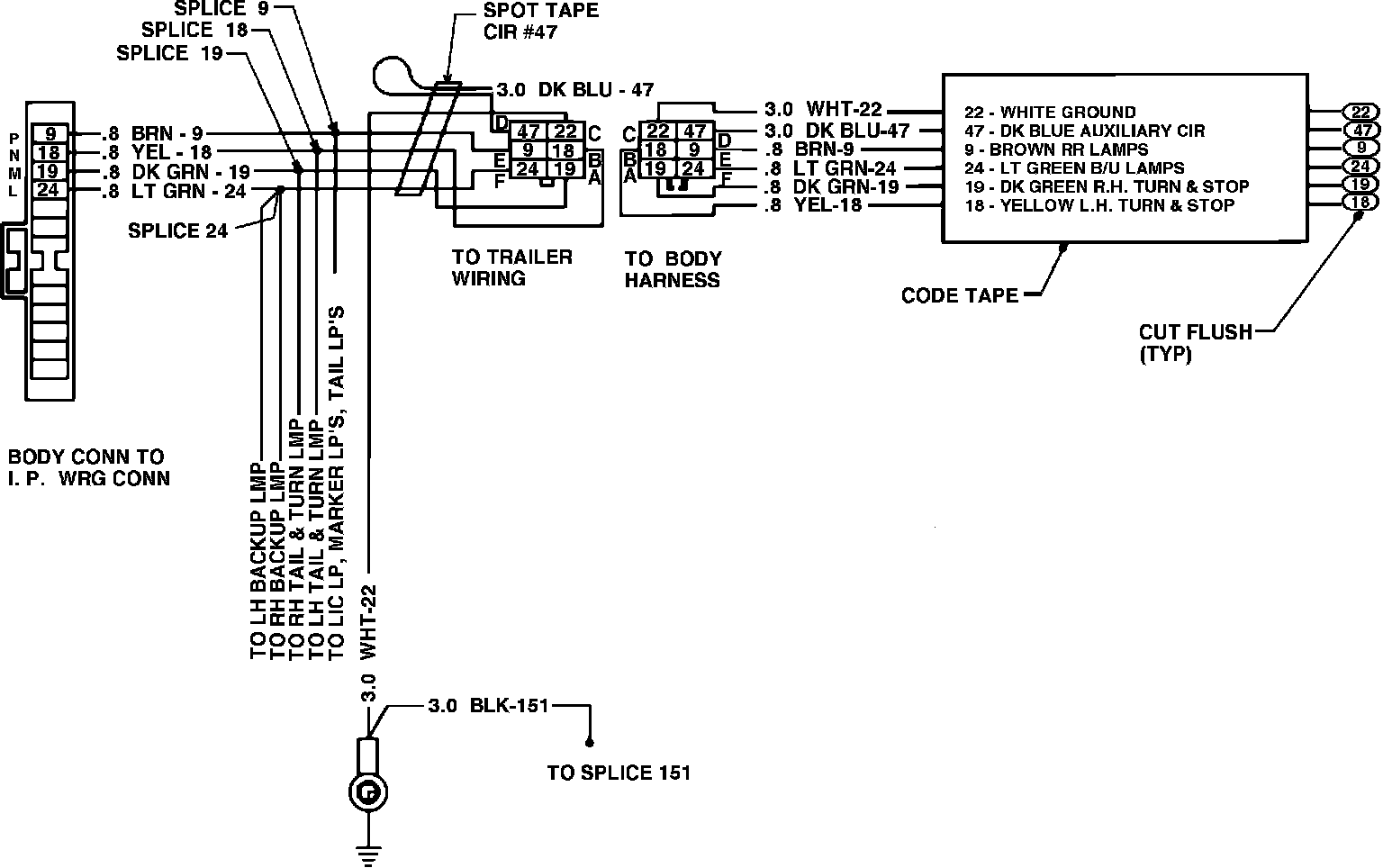

Trailer Accessory Wiring Circuit. Lighting System:
