Fig. 91 California (Emission Identification Code Ufy)
Fig. 91 California (Emission Identification Code Ufy)

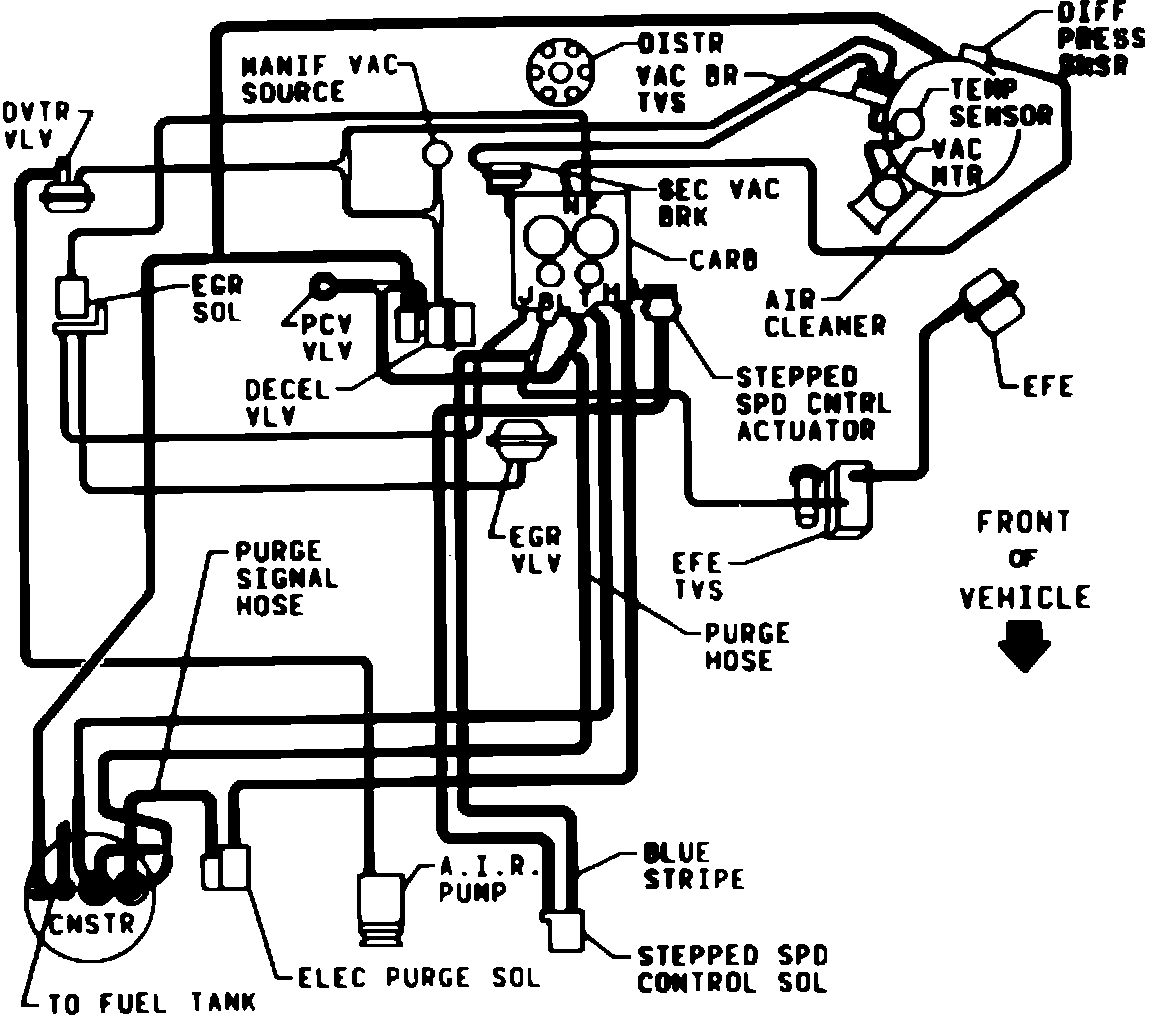

Fig. 91 Vacuum hose routing. 1985 V6-262 California (emission identification code UFY):
