Fig. 94 High Alt. W/ Auto. Trans. (Emission Id. Code Ufr)
Fig. 94 High Alt. W/ Auto. Trans. (Emission Id. Code Ufr)

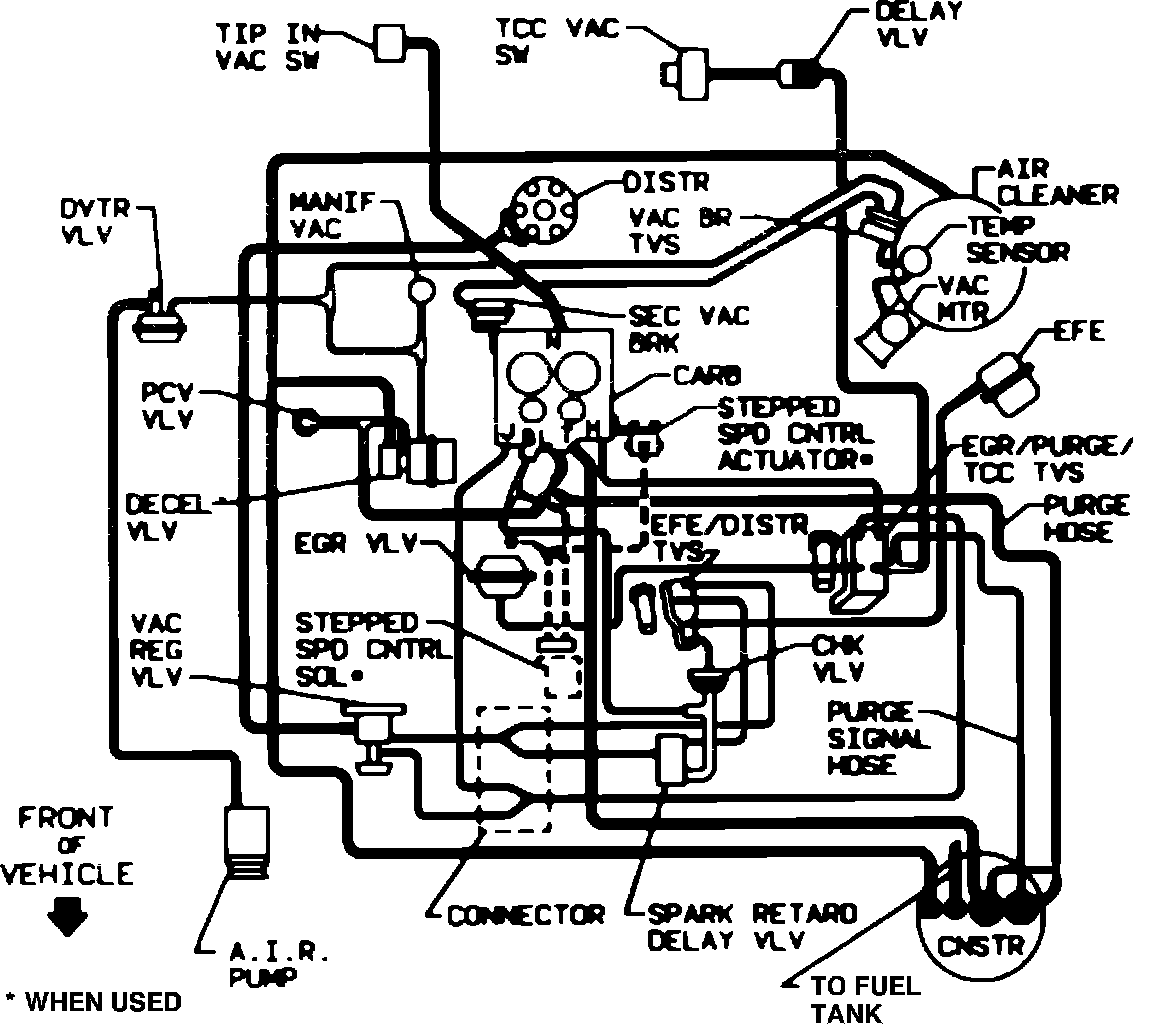

Fig. 94 Vacuum hose routing. 1985 V6-262 high alt. w/ auto. trans. (emission identification code UFR):
