Fig. 97 High Alt. W/ Auto. Trans. (Emission Id. Code Ufw)
Fig. 97 High Alt. W/ Auto. Trans. (Emission Id. Code Ufw)

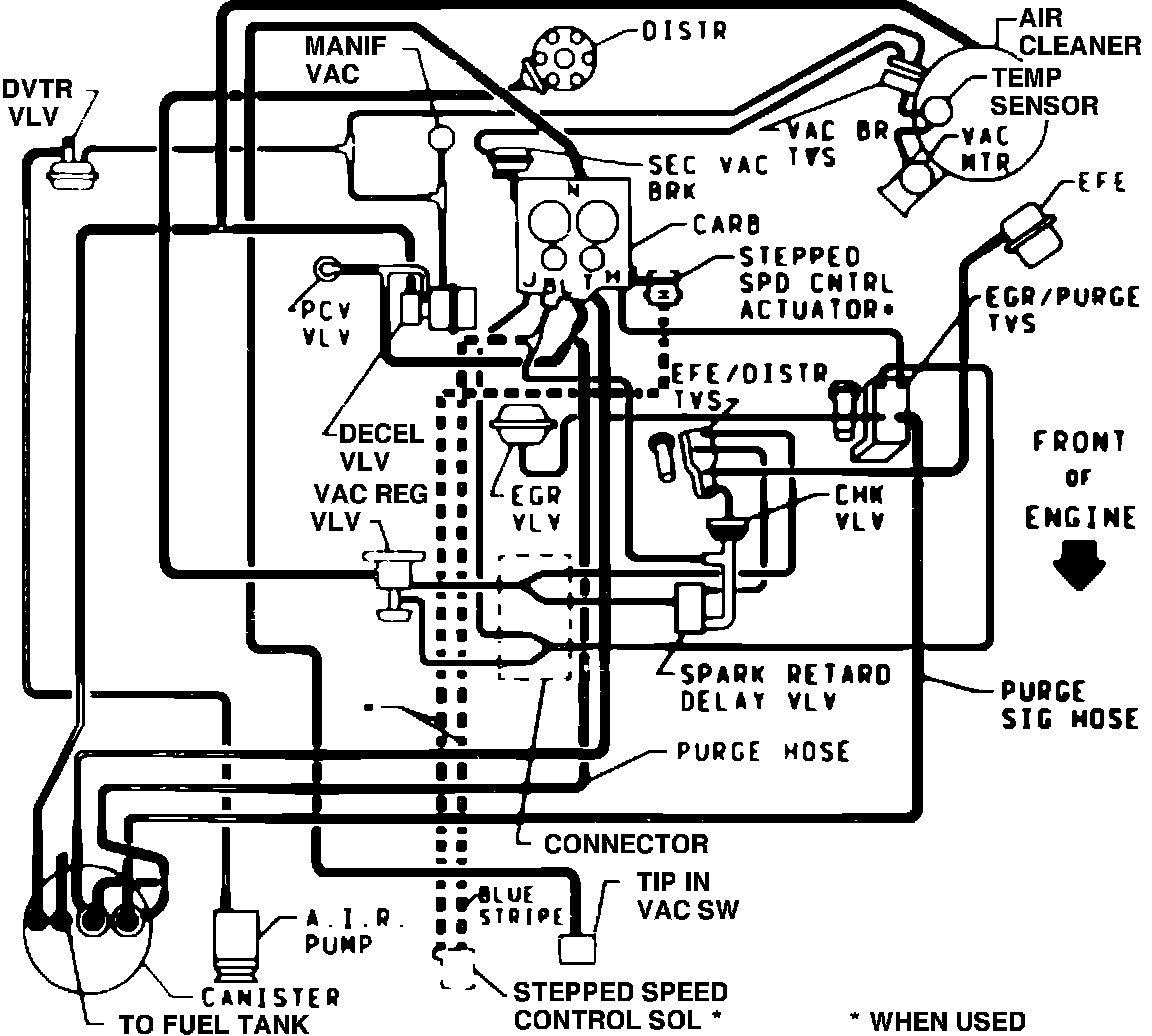

Fig. 97 Vacuum hose routing. 1985 V6-262 high alt. w/ auto. trans. (emission identification code UFW):
