Emission Control Systems
>>
W/ Auto. Trans. Except Ca. & High Alt. (Emission Id. Code Ukb)
W/ Auto. Trans. Except Ca. & High Alt. (Emission Id. Code Ukb)

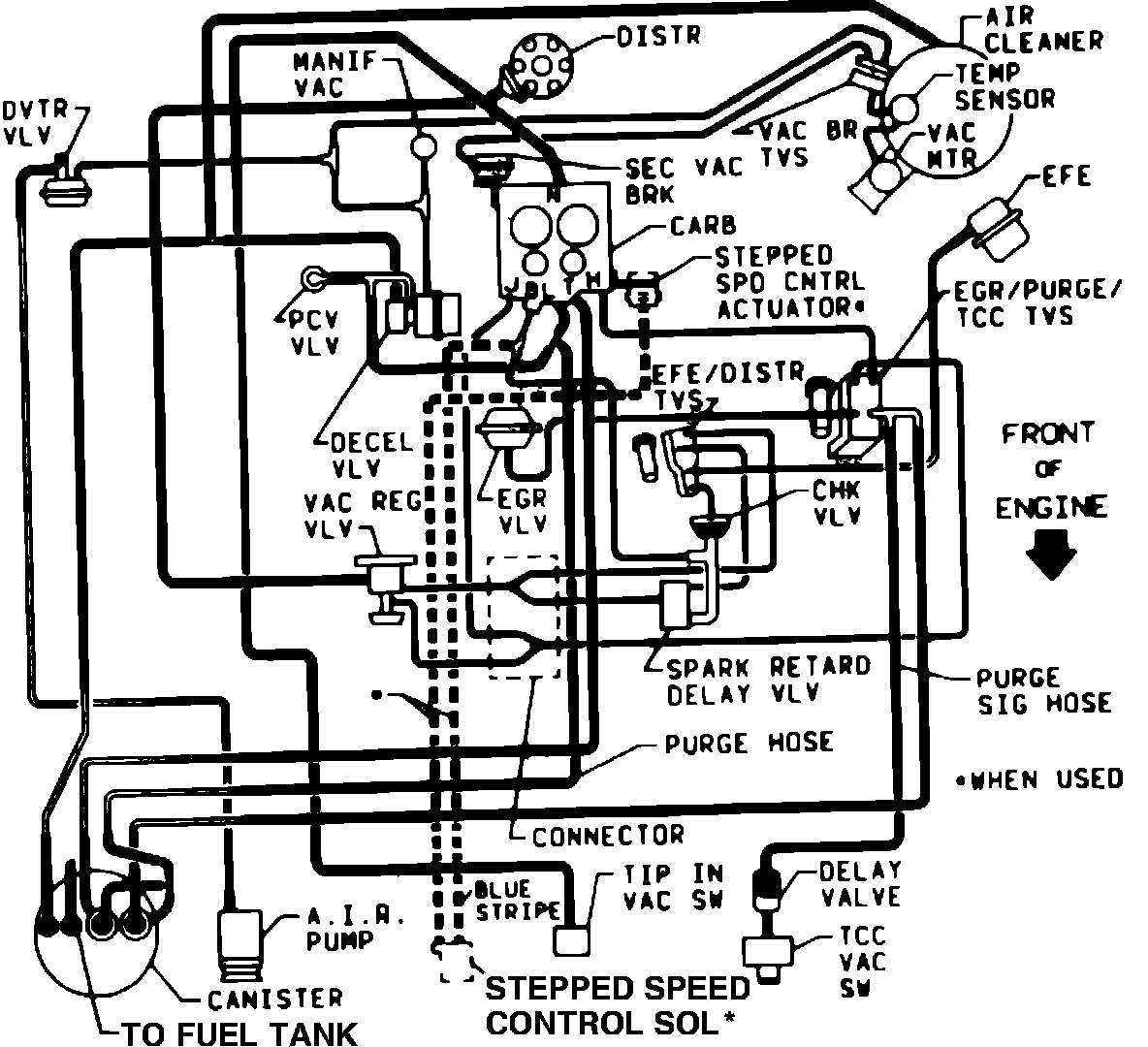

Fig. 88 Vacuum hose routing. 1985 V6-262 w/ auto. trans. except Calif. & high alt. (emission identification code UKB):
