W/ Man. Trans. High Alt. (Emission Id. Codes Ufk & Ukd)
W/ Man. Trans. High Alt. (Emission Id. Codes Ufk & Ukd)

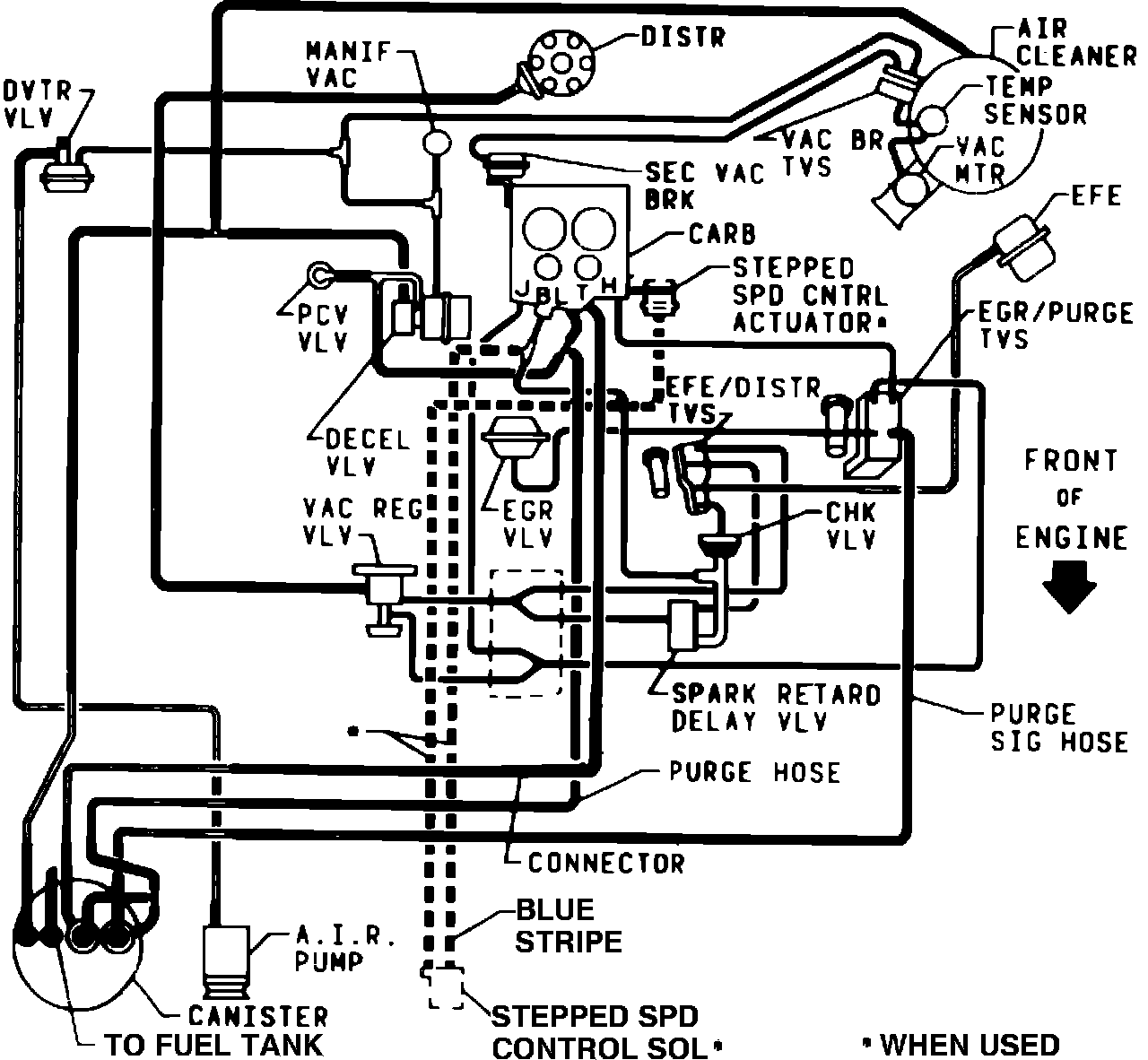

Fig. 85 Vacuum hose routing. 1985 V6-262 w/ man. trans. except Calif. & high alt. (emission identification codes UFK & UKD):
