W/Man. Trans. High Alt. (Emission Id. Codes Ufj & Ukc)
W/Man. Trans. High Alt. (Emission Id. Codes Ufj & Ukc)

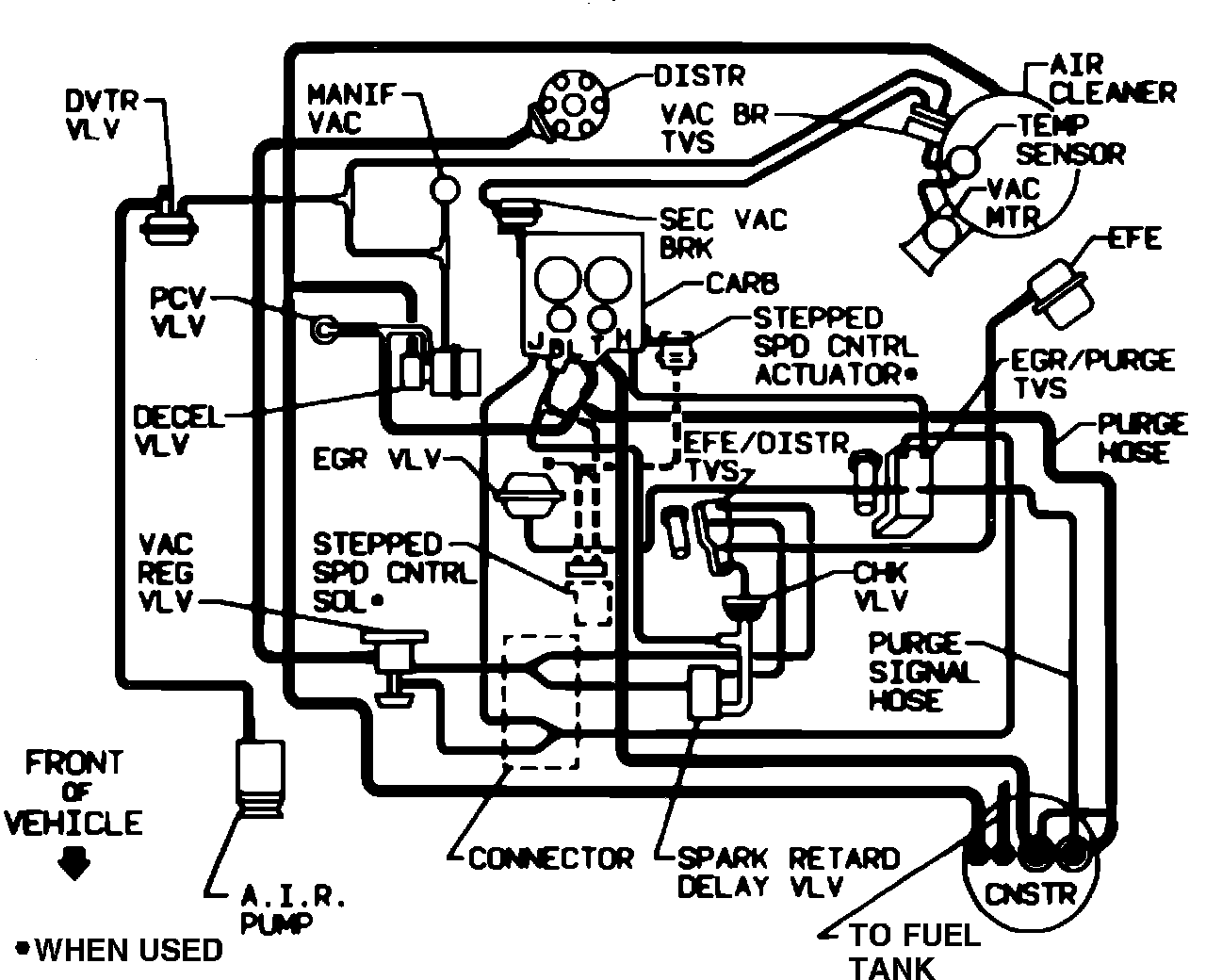

Fig. 84 Vacuum hose routing. 1985 V6-262 w/ man. trans. except Calif. & high alt. (emission identification codes UFJ & UKC):
