System Specifications

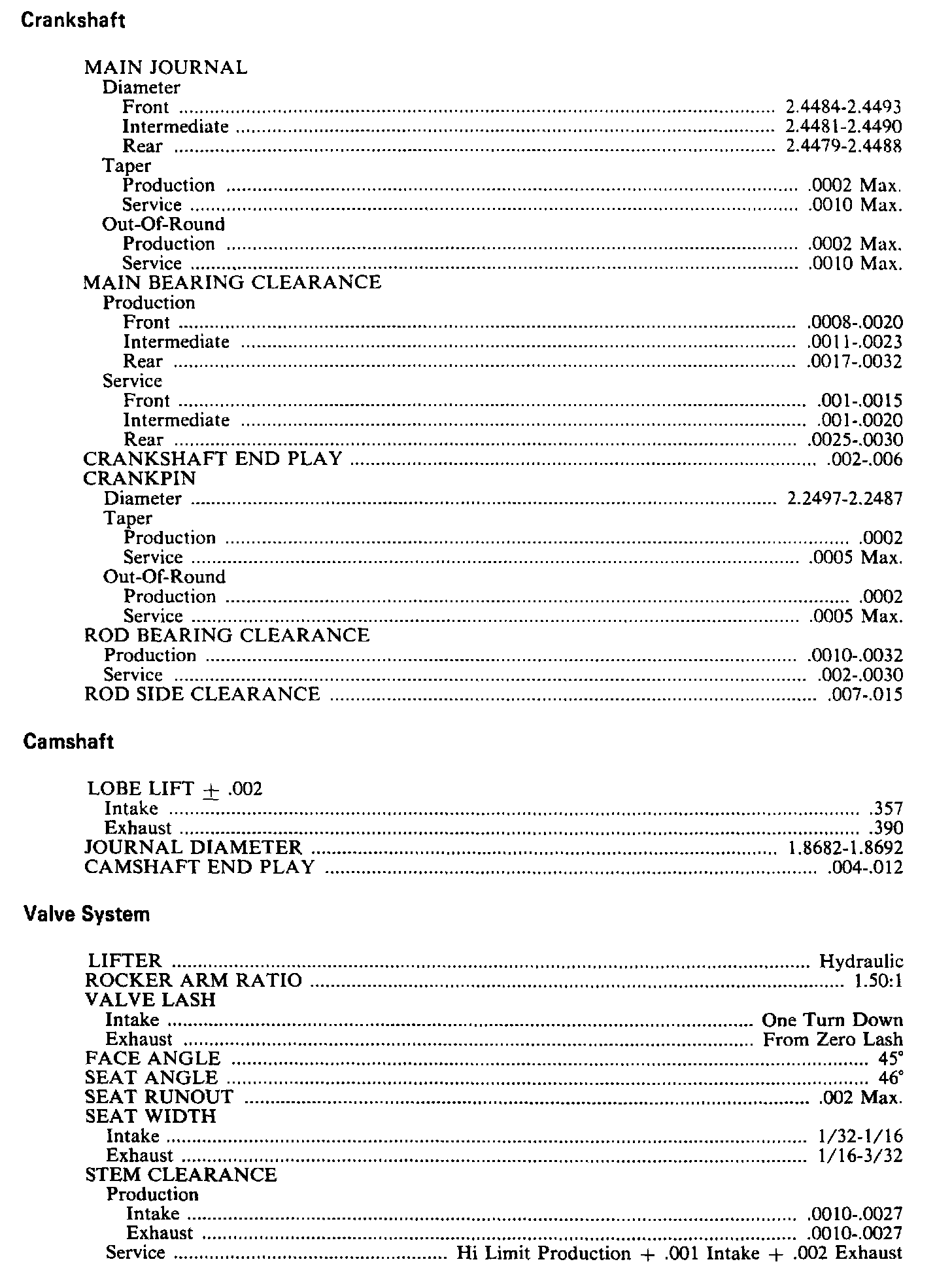

Engine Specifications:





Continued Engine Specifications:





Engine Specifications:





Torque Specifications:






Intake Manifold Sequence:

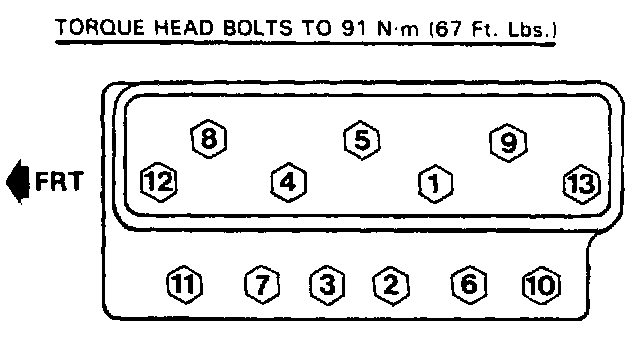

Cylinder Head Sequence:
