Chevy Truck
>>
1985
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

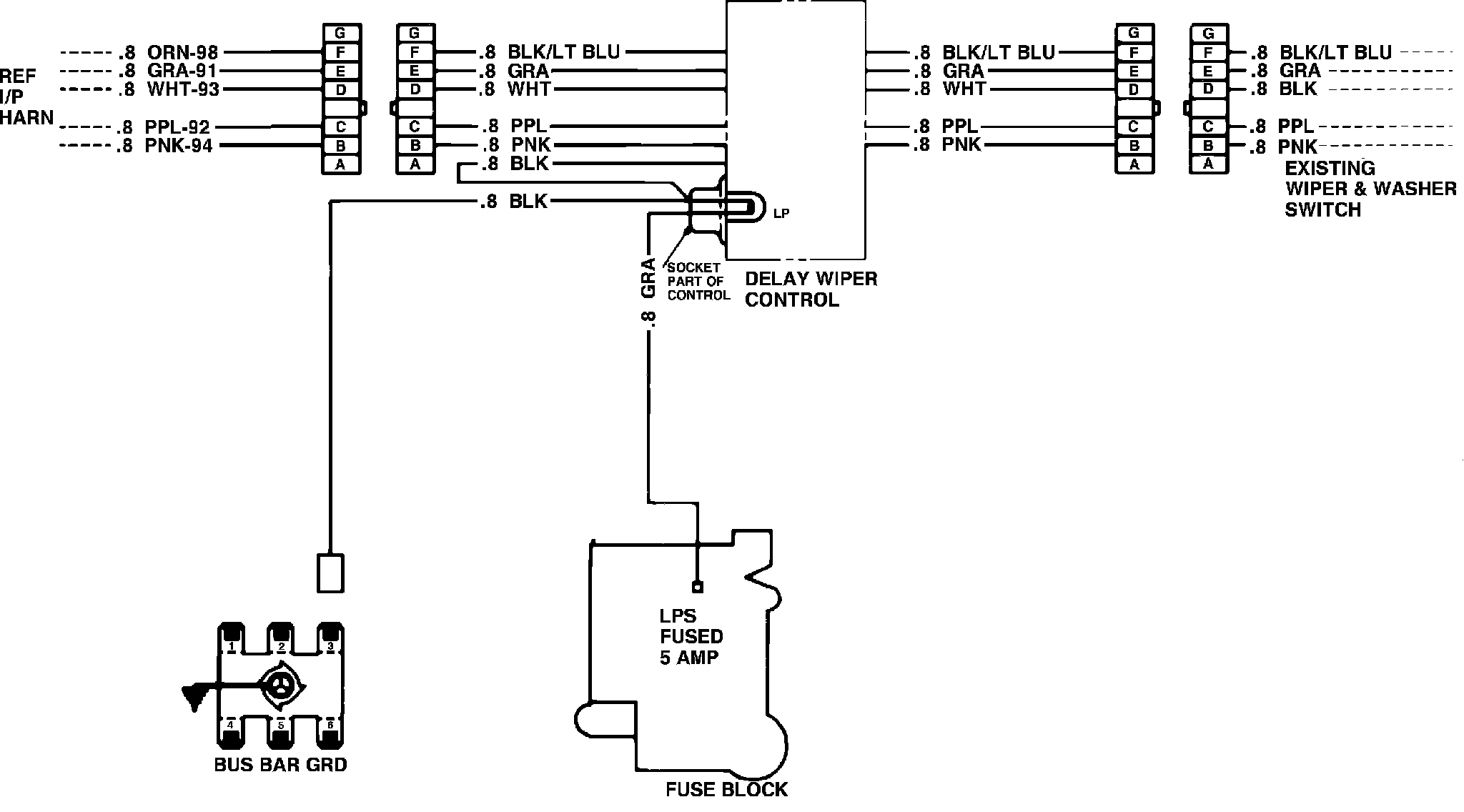

Wiper/Washer Wiring Circuit. Except G Models With Pulse:
