Trunk Lamp

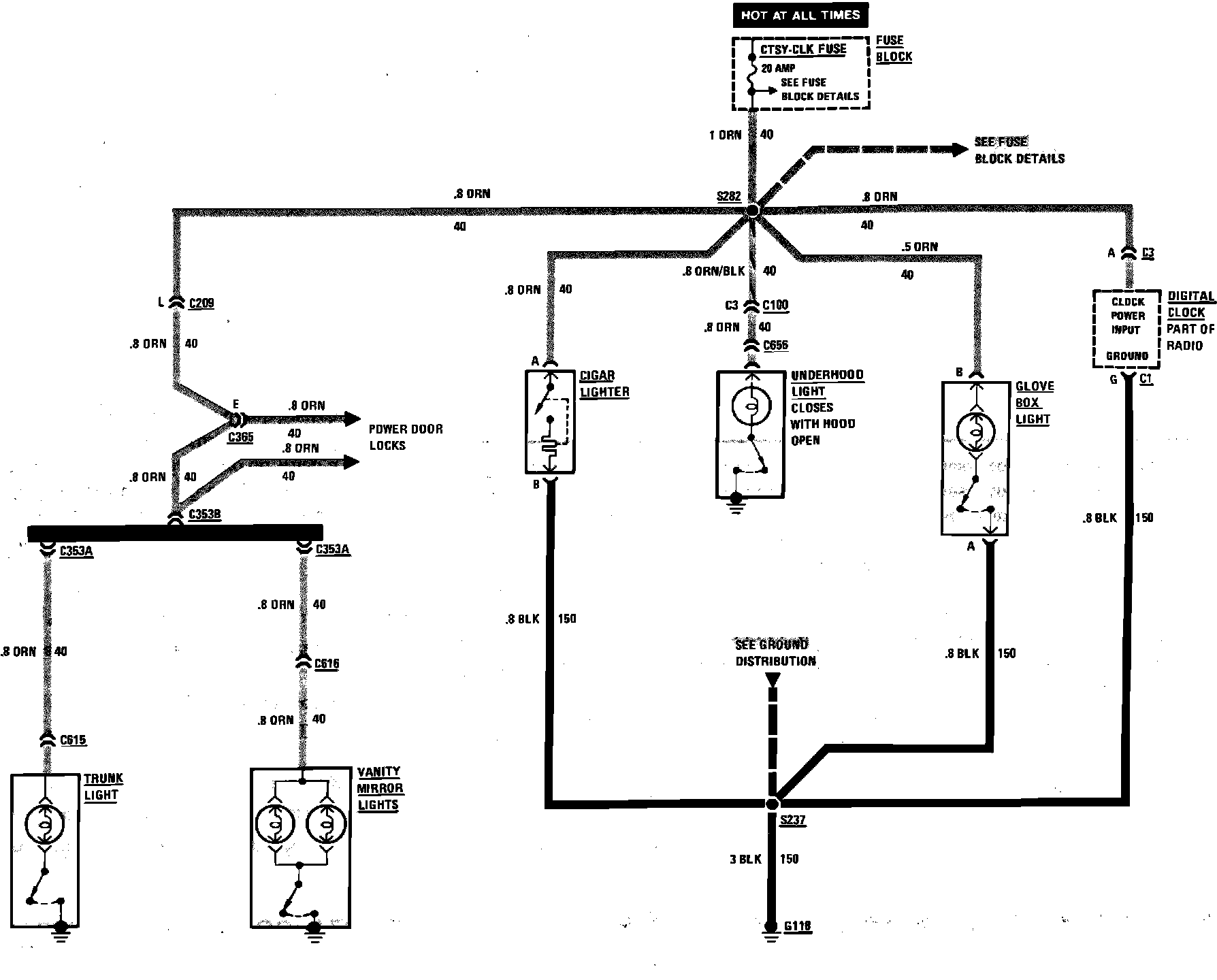

Fig. 188 Interior Lamp Wiring Circuit (Cigar Lighter, Clock, Glove Box, Trunk, Underhood & Vanity Lamps):
