Vehicle Sensors & Torque Converter Clutch (TCC)

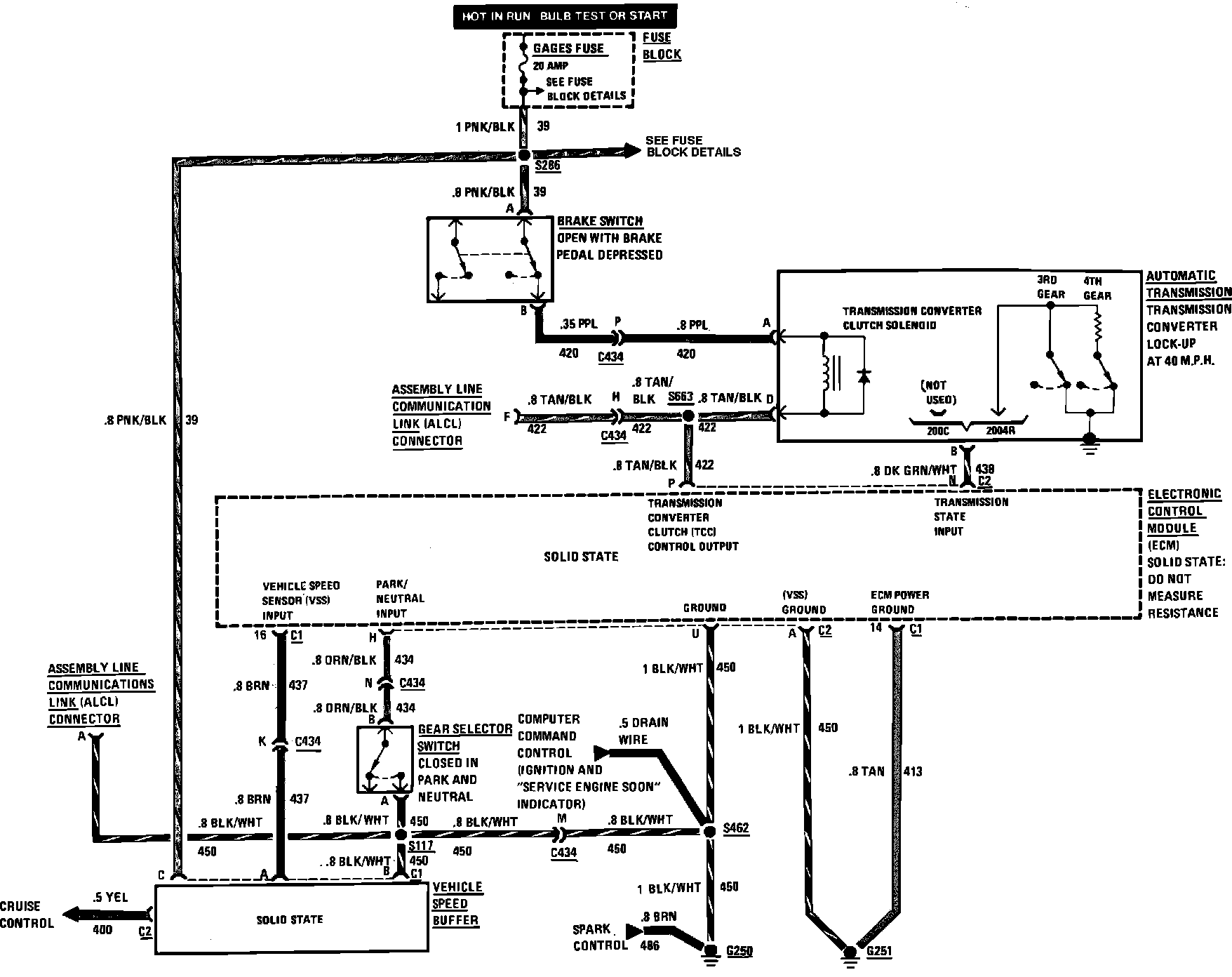

Computer Command Control Wiring Circuit (Vehicle Sensor & Torque Converter Clutch):



Computer Command Control Wiring Circuit (Vehicle Sensor & Torque Converter Clutch):
