Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Fig. 140 TBI G Series
Fig. 140 TBI G Series

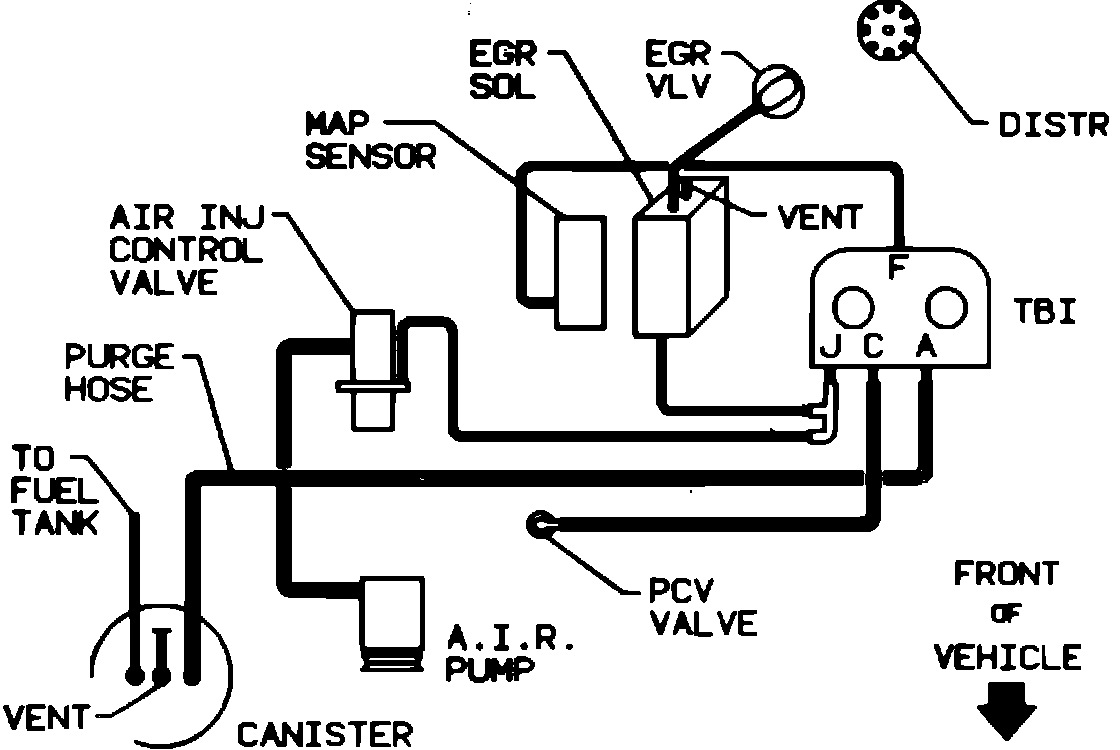

Fig. 140 Vacuum hose routing. 1987 V8-350 TBI G Series:
