Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>

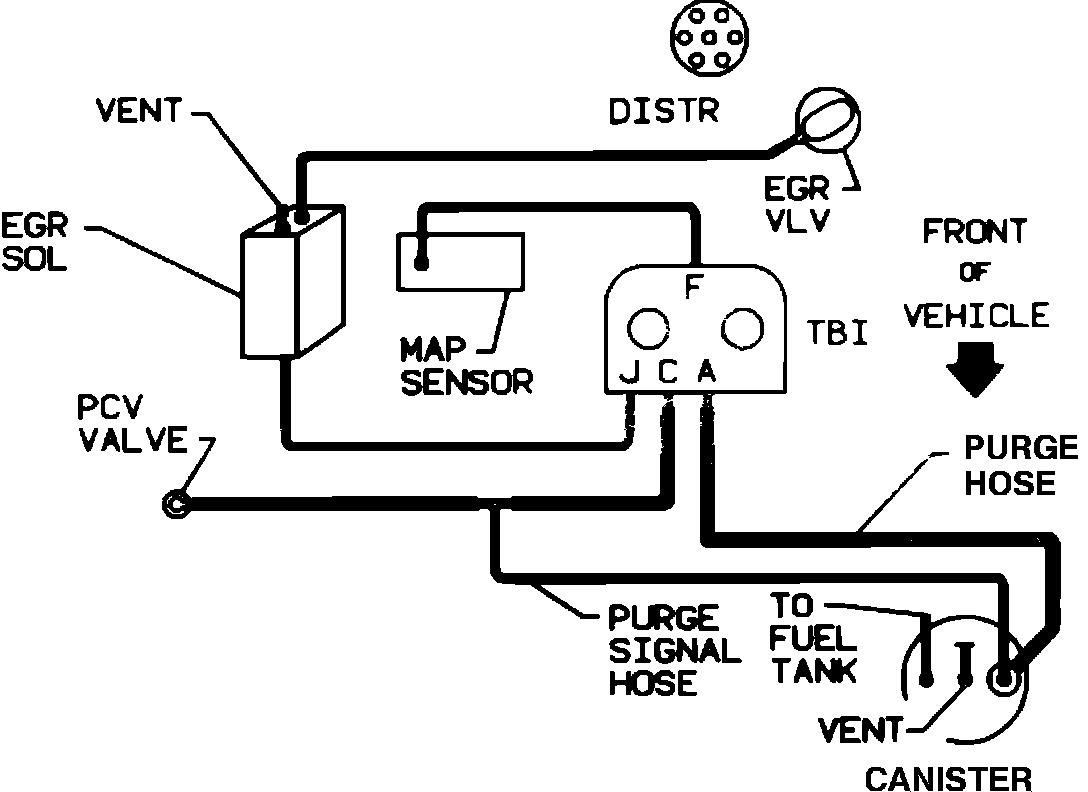

Fig. 133 C&K, R&V 10 Series Federal & High Alt. W/Auto. Trans.
Fig. 133 C&K, R&V 10 Series Federal & High Alt. W/Auto. Trans.
Fig. 133, Federal A/T & High Alt.:
