Chevy Truck
>>
1987
>>
S10/T10 P/U 2WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
Fuse and Fusible Links

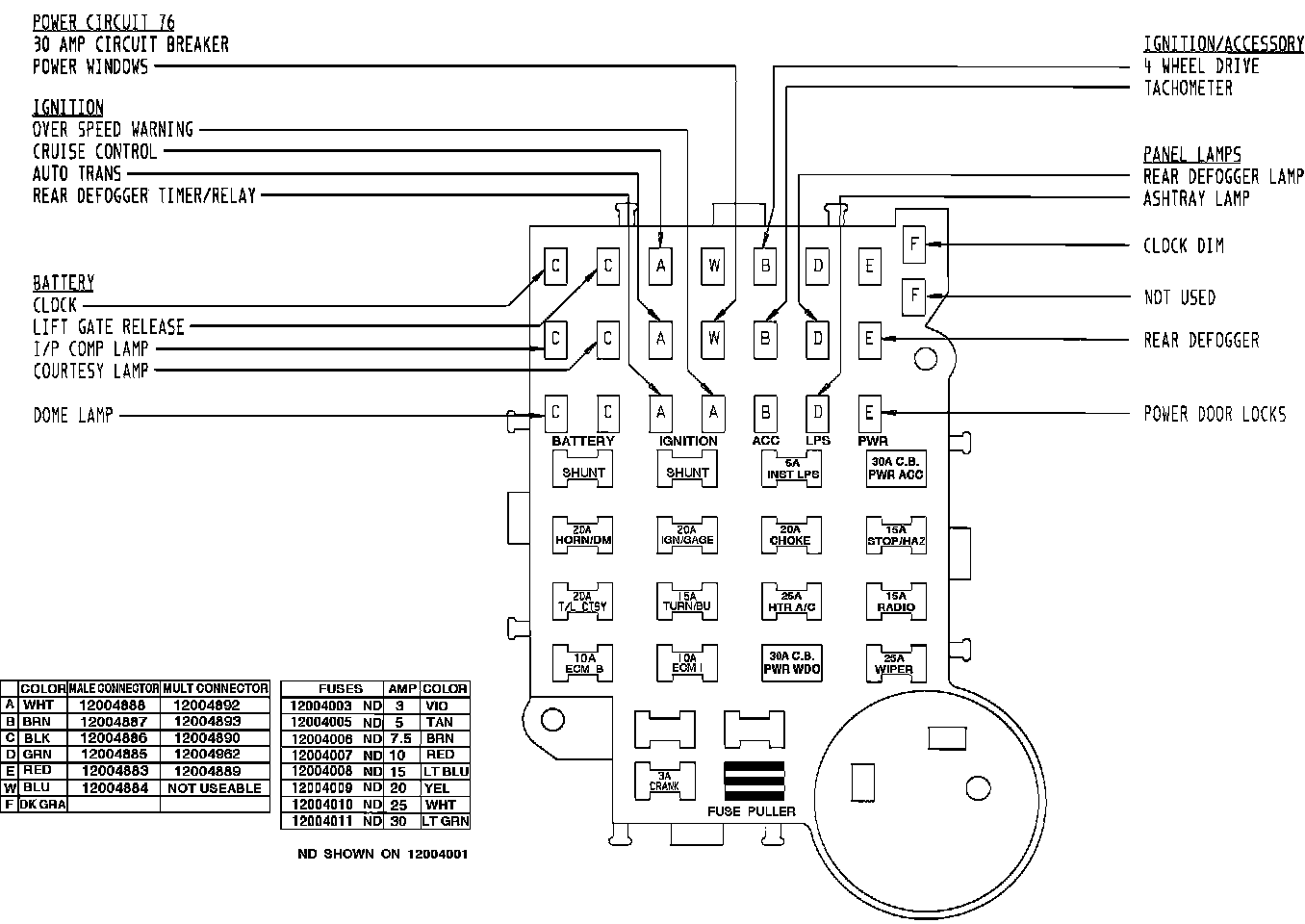

Fig. 1 Fuse Panel. Front View:
