Instrument Panel, Gauges and Warning Indicators: Service and Repair

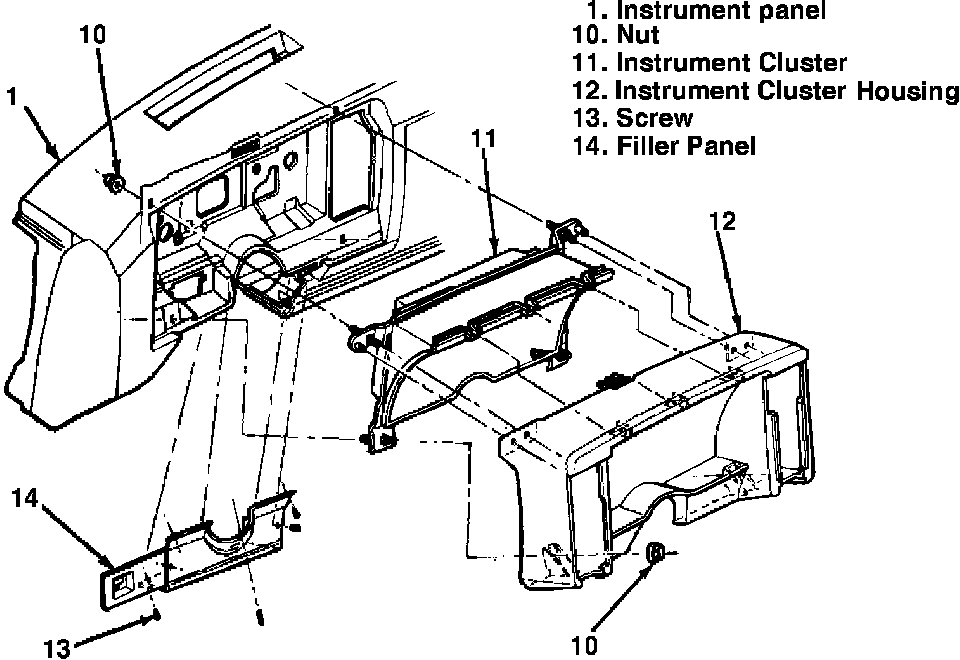

Fig. 11 Instrument cluster removal. 1986-87:

1986-87

1. Disconnect battery ground cable.
2. Remove headlamp switch assembly as previously described.
3. Remove A/C and heater control assembly attaching screws, then disconnect electrical connectors and remove control assembly from dash panel.
4. Remove filler panel attaching screws and the panel, Fig. 11.
5. Remove instrument cluster housing attaching nuts and the housing.
6. Remove instrument cluster attaching nuts.
7. Disconnect speedometer cable and electrical connectors from instrument cluster, then remove cluster from vehicle.
8. Reverse procedure to install.
