Transfer Case: Testing and Inspection

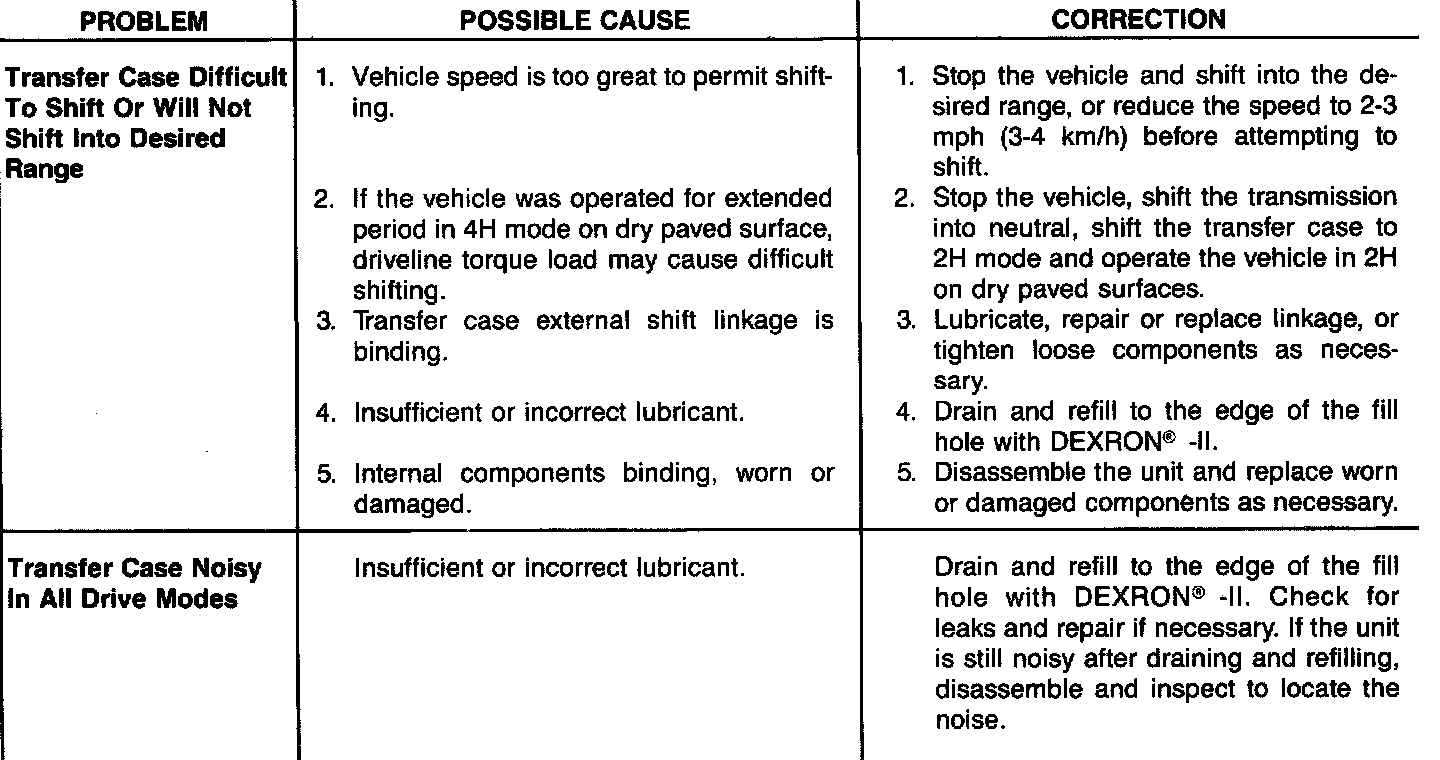

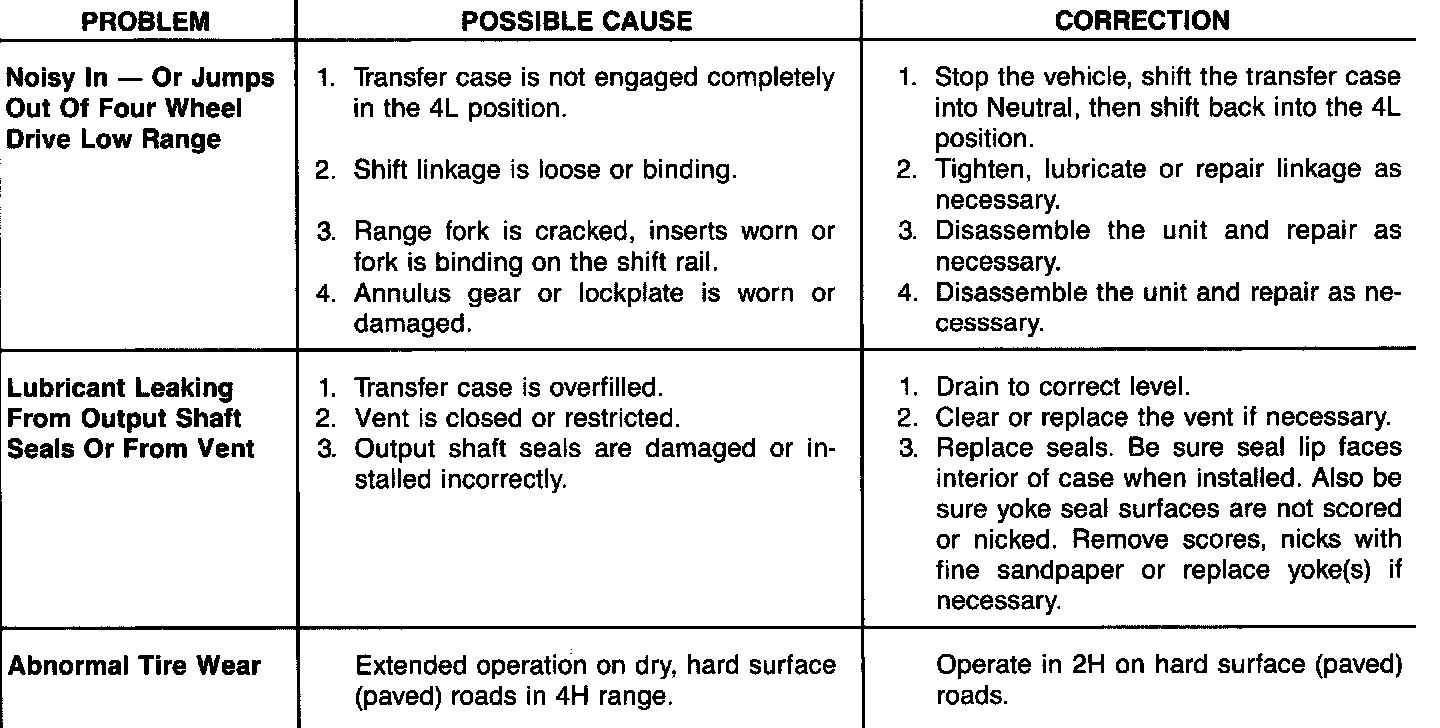

DIAGNOSIS OF THE
TRANSFER CASE
Betore servicing, check the front hubs, axles, propeller shafts, wheels and tires, transmission or clutch.
