Compressor Clutch Relay: Locations

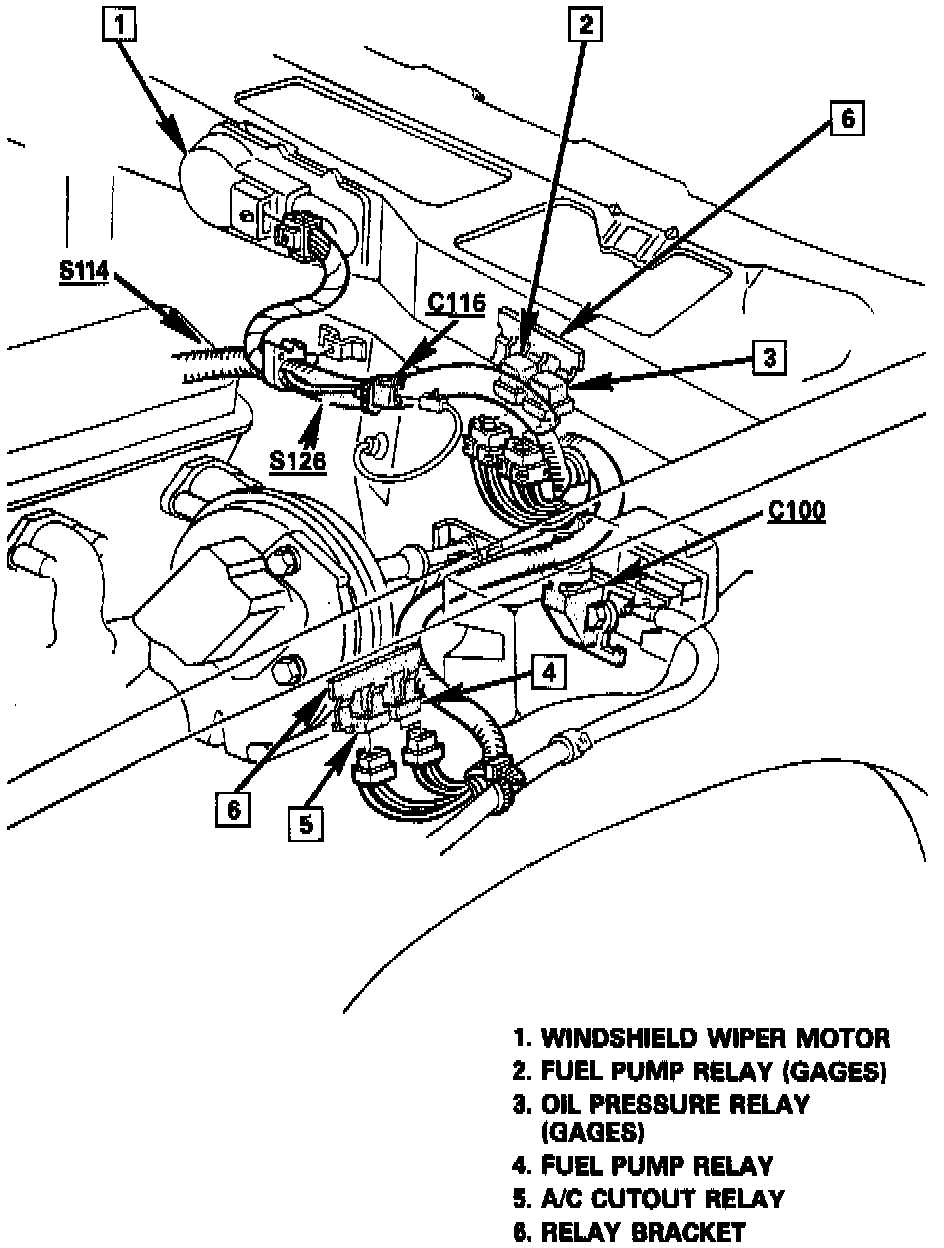

A/C Cutout Relay:
The A/C Cutout Relay is located at the LH front of the dash on the relay bracket.
