Home
>>
Chevy Truck
>>
1989
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
Power Locks

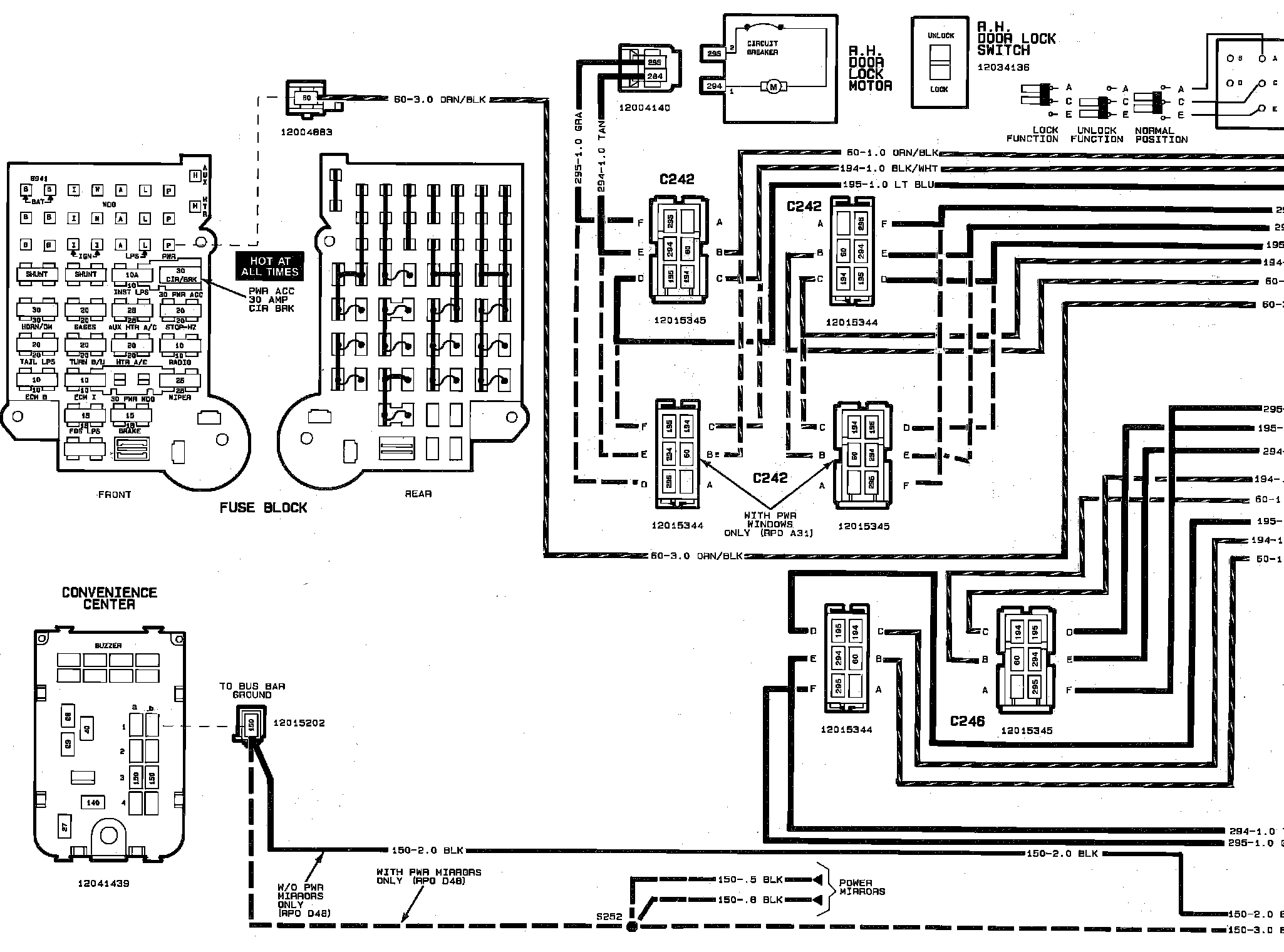

oٖ> @�>Power Door Locks W/ Delay Relay Wiring Circuit:
