Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
1 Ton Series (Altitude)
1 Ton Series (Altitude)

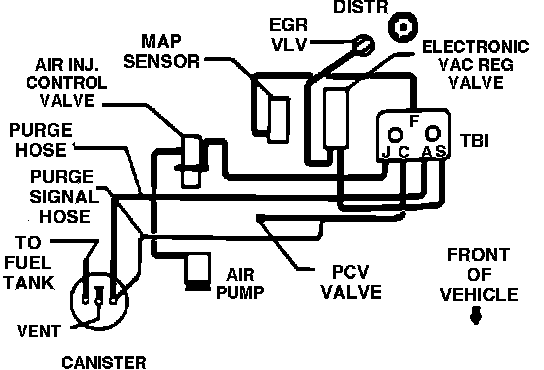

Vacuum & Vapor Hose Diagram:
