Reverse Gear, Lever & Fork

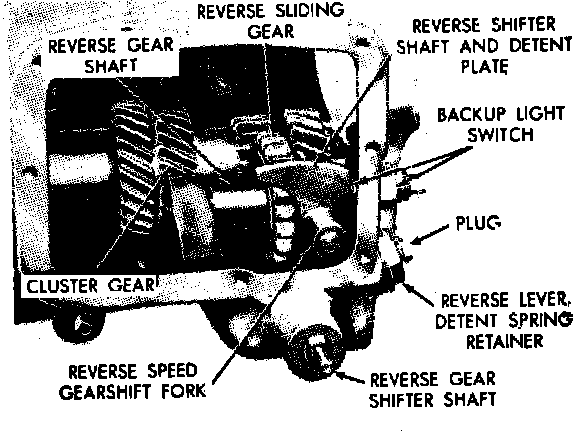

Fig. 7 Reverse Gearing & Countergear:

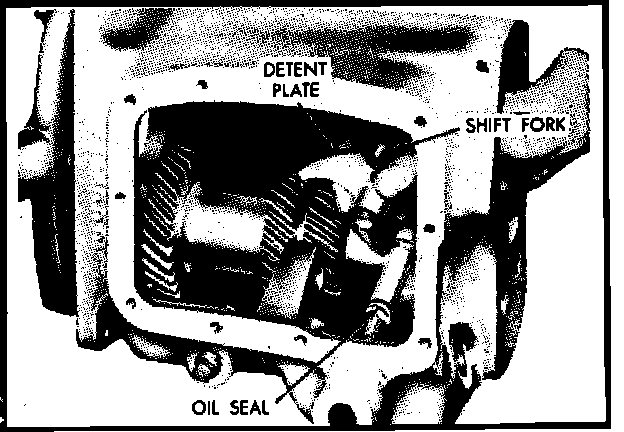

Fig. 8 Reverse Shift Fork & Lever Removal:

1. Remove gearshift lever detent spring retainer, gasket, plug and detent ball spring from rear of case, Fig. 7.
2. Press reverse idler gear shaft from case and remove woodruff key.
3. If oil leakage is present around the reverse gearshift lever shaft, remove any burrs from shaft. Carefully push reverse gearshift lever shaft inward and remove from case, Fig. 8. Remove detent ball from bottom of case, then the shift fork from shaft and detent plate.
