Chevy Truck
>>
1989
>>
R 20 P/U 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Calif
Calif

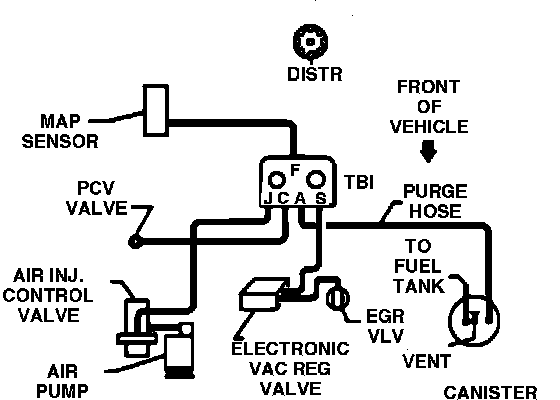

Vacuum & Vapor Hose Diagram:
