Windshield Washer Pump: Service and Repair

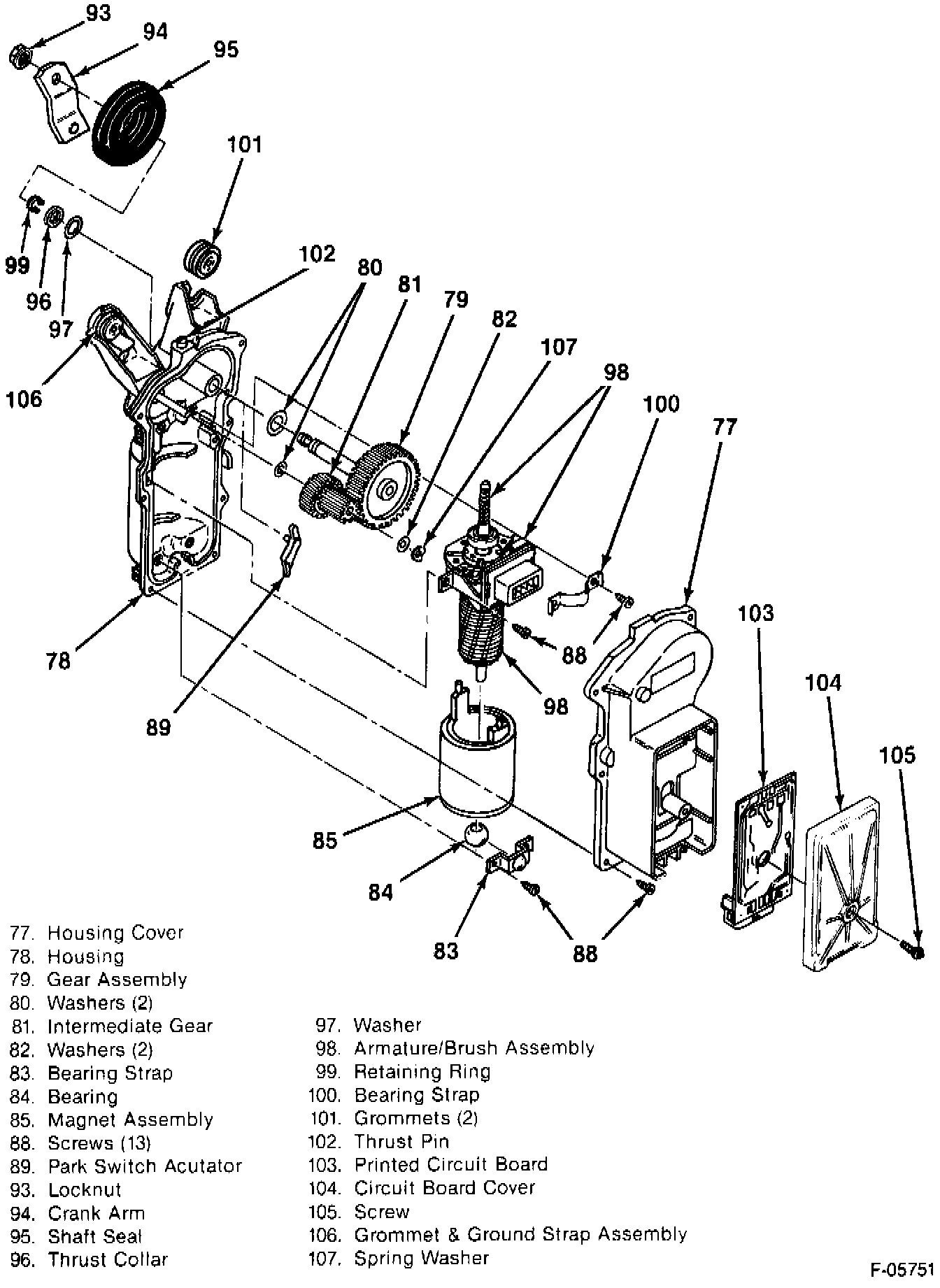

Wiper Motor Components (Delay Wiper):

REMOVE OR DISCONNECT
1. Battery ground cable.
2. Bolts (69).
3. Wiring harness.
4. Hose.
5. Container and pump assembly.

INSTALL OR CONNECT
1. Container and pump assembly to the vehicle.
2. Hose.
3. Wiring harness.
4. Bolts (69).
5. Battery ground cable.
