Digital Dash Component Service

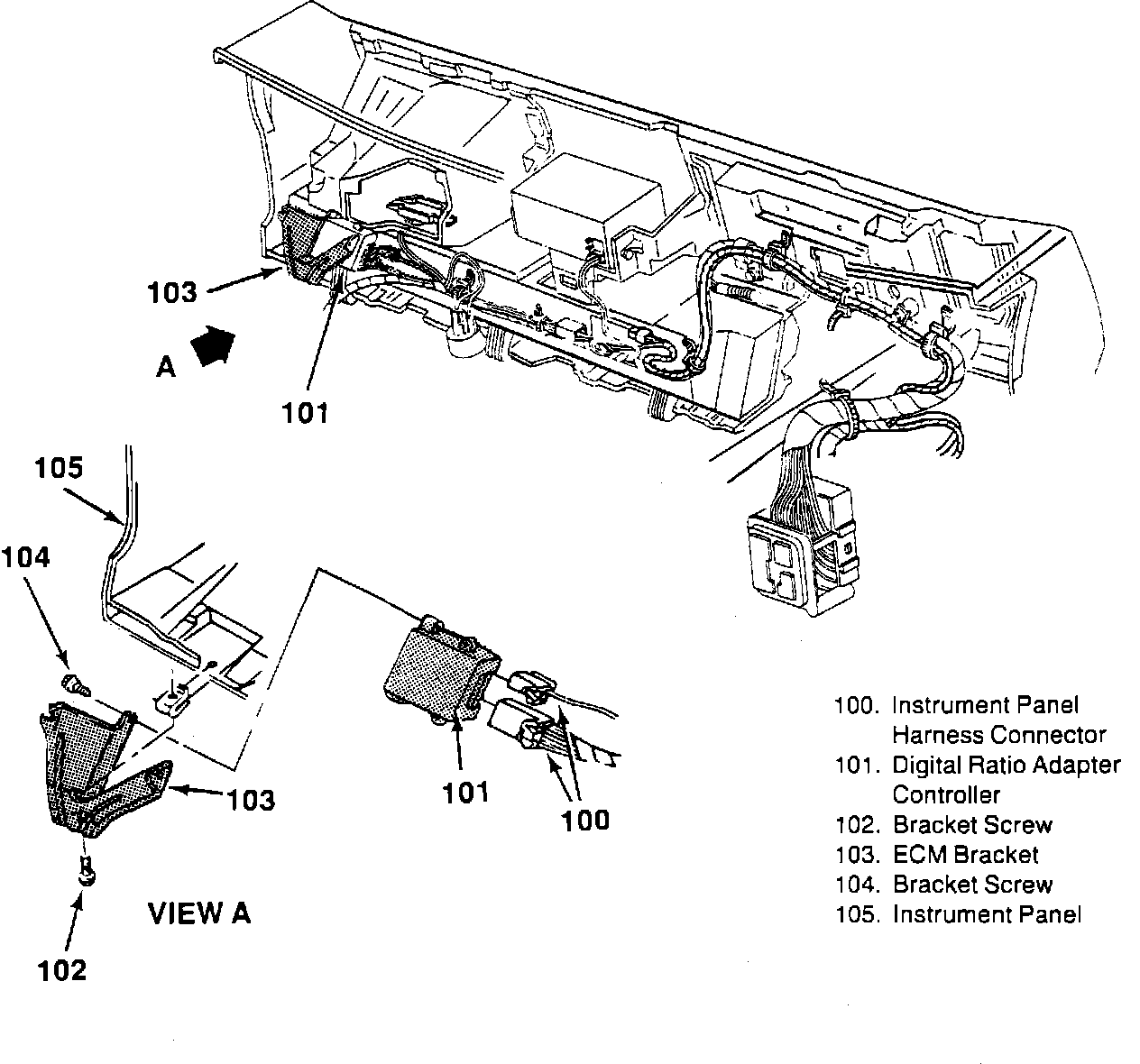

Digital Ratio Adapter Controller Location:

REMOVE OR DISCONNECT:

1. Battery ground cable from the battery.
2. Instrument panel harness connector (100) from the controller (101).
3. Bracket screw (102) from the ECM bracket (103).
4. Bracket screws (104) from the controller (101).


INSTALL OR CONNECT:

1. Bracket screws (104) to the controller (101).
2. Bracket screw (102) to the ECM bracket (103).
3. Instrument panel harness connector (100) to the controller (101).
4. Battery ground cable to the battery.
