Digital Dash Replacement

Instrument Panel Controls:

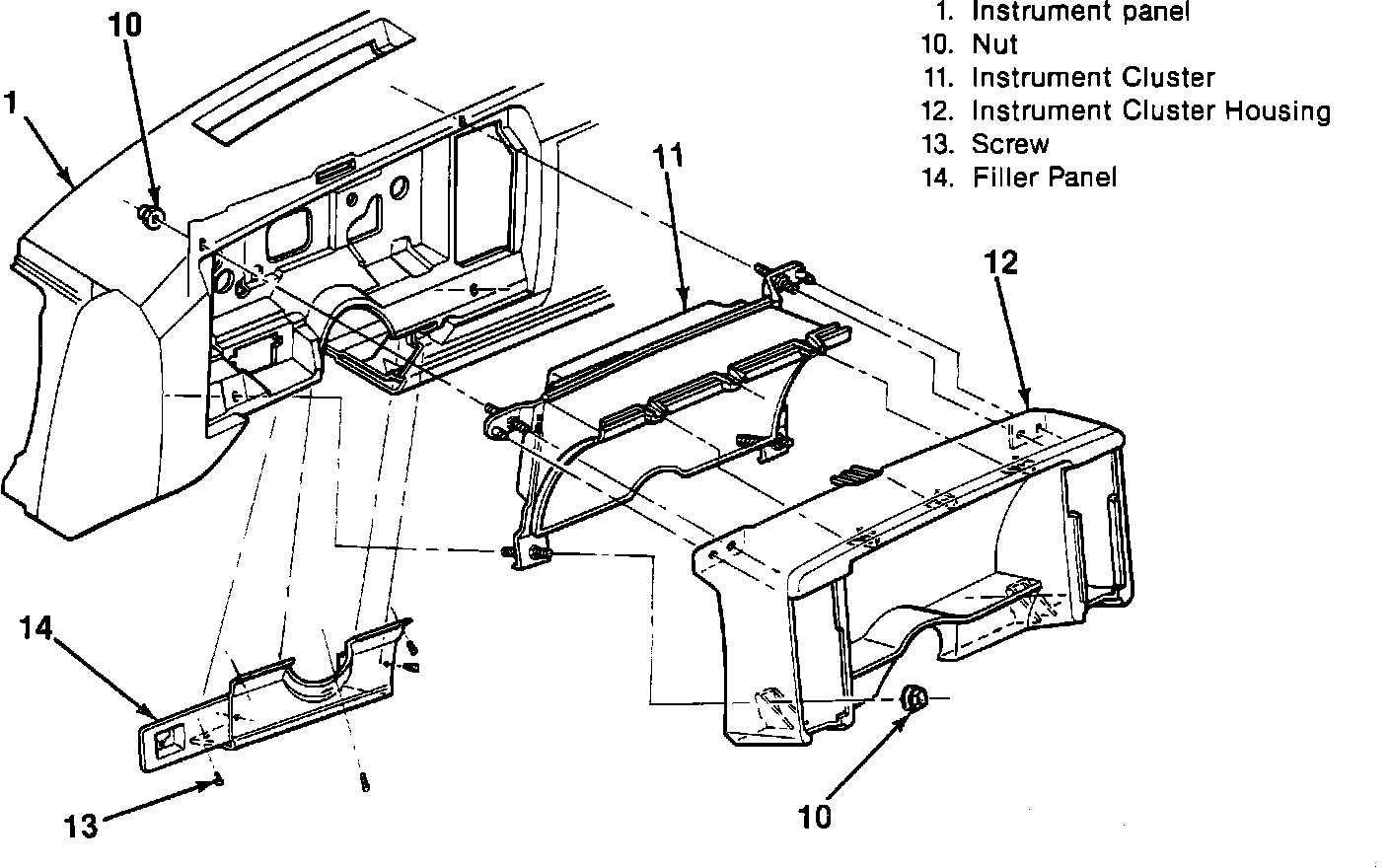

Instrument Panel Components:

INSTRUMENT CLUSTER REPLACEMENT

REMOVE OR DISCONNECT:

1. Battery ground cable from battery.
2. Lamp switch trim plate screws (3).
3. Lamp switch trim plate (4).
4. Lamp switch harness.
5. A/C and heater control assembly screws (3).
6. A/C and heater control assembly (2).
7. A/C and heater control assembly harness.
8. Filler panel screws (13).
9. Filler panel (14).
10. Instrument cluster housing nuts (10).
11. Instrument cluster housing (12).
12. Instrument cluster nuts (10).
13. Instrument cluster (11).


INSTALL OR CONNECT:

1. Instrument cluster (11).
2. Instrument cluster nuts (10).
3. Instrument cluster housing (12).
4. Instrument cluster housing nuts (10).
5. Filler panel (14).
6. Filler panel screws (13).
7. A/C and heater control assembly harness.
8. A/C and heater control assembly (2).
9. A/C and heater control assembly screws (3).
10. Lamp switch harness.
11. Lamp switch trim plate (4).
12. Lamp switch trim plate screws (3).
13. Battery ground cable to the battery.
