Instrument Cluster Diagnosis - Digital Dash

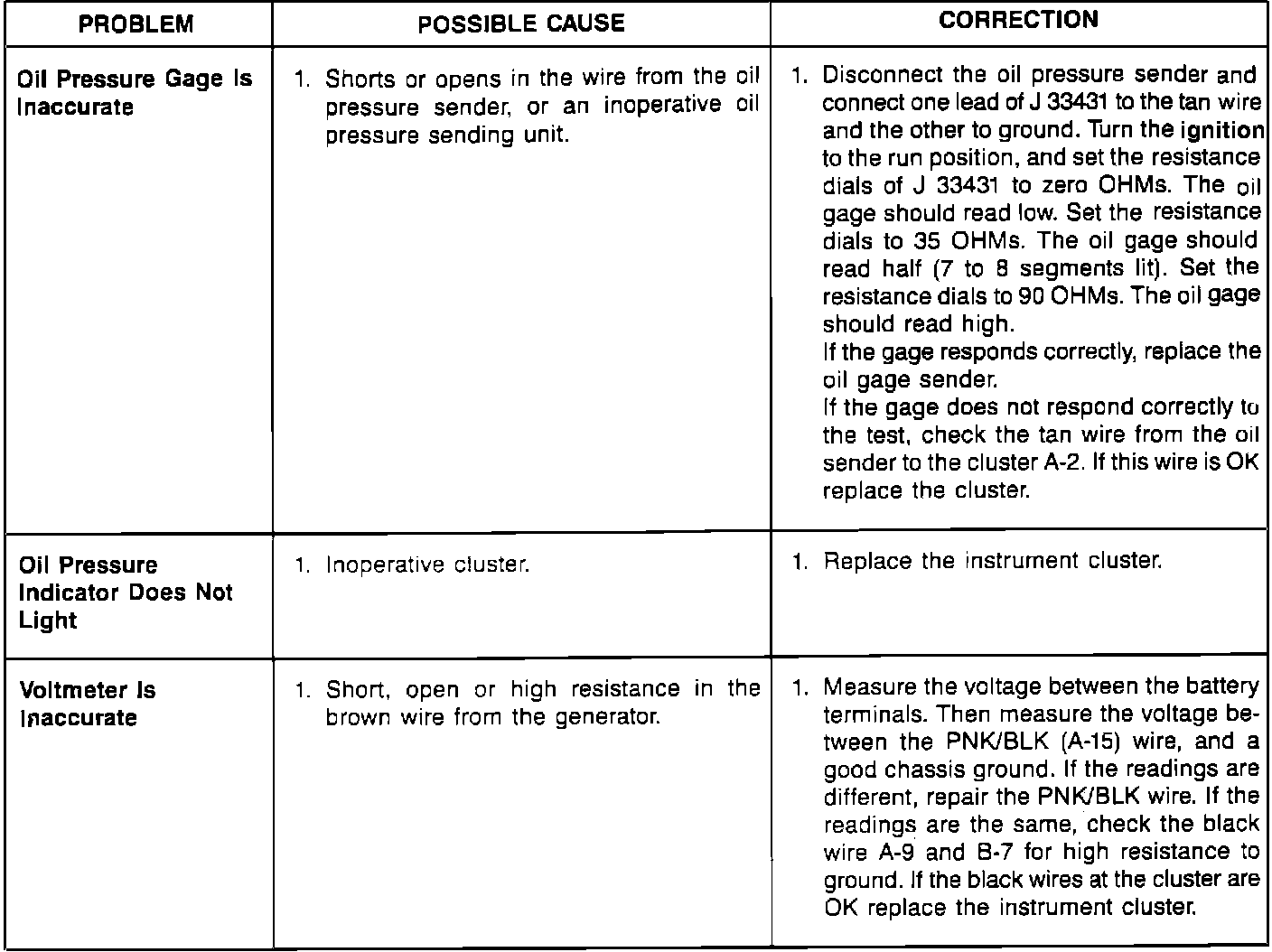

Electronic Instrument Cluster Diagnostics - Part 1 Of 3:

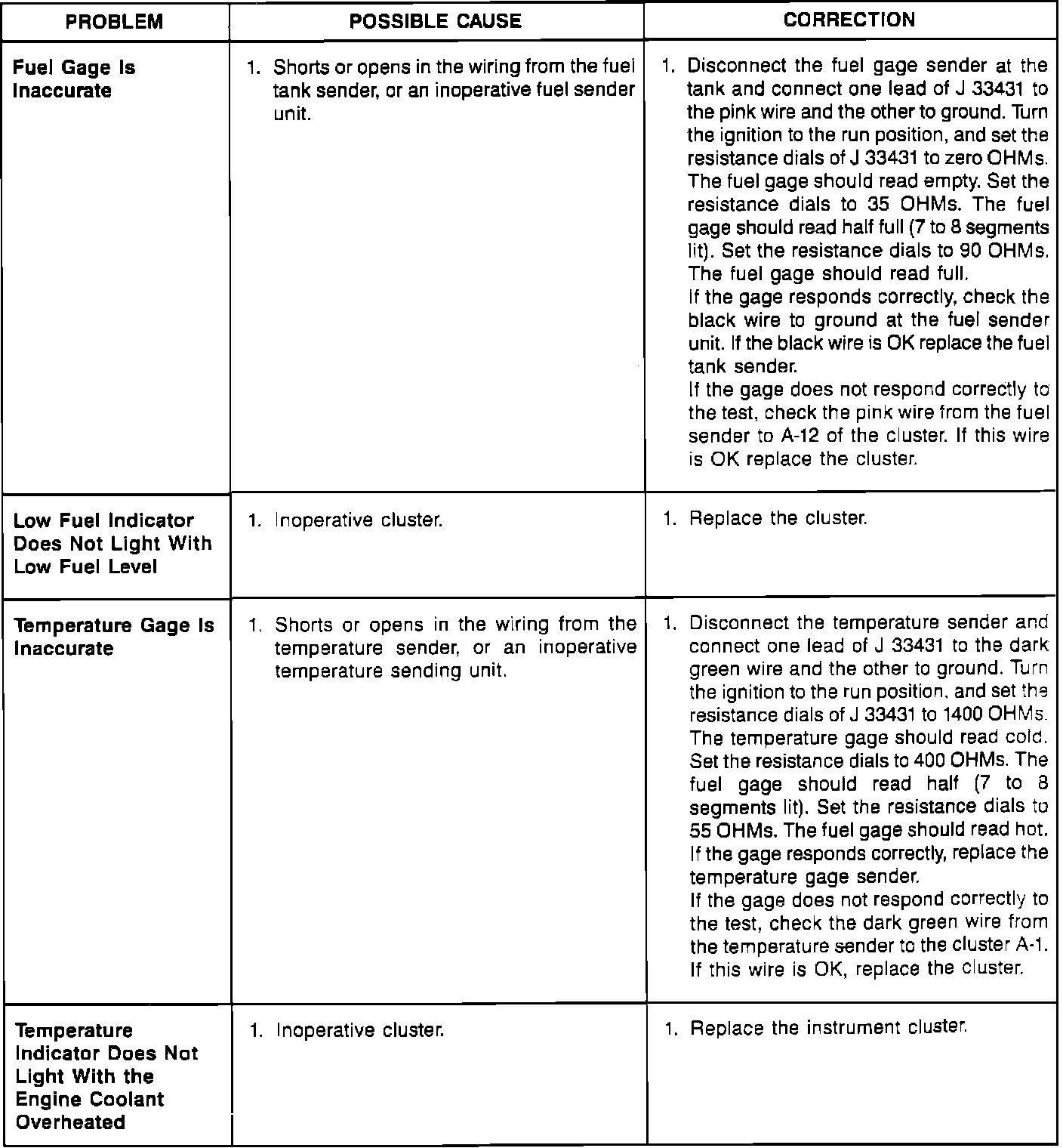

Electronic Instrument Cluster Diagnostics - Part 2 Of 3:

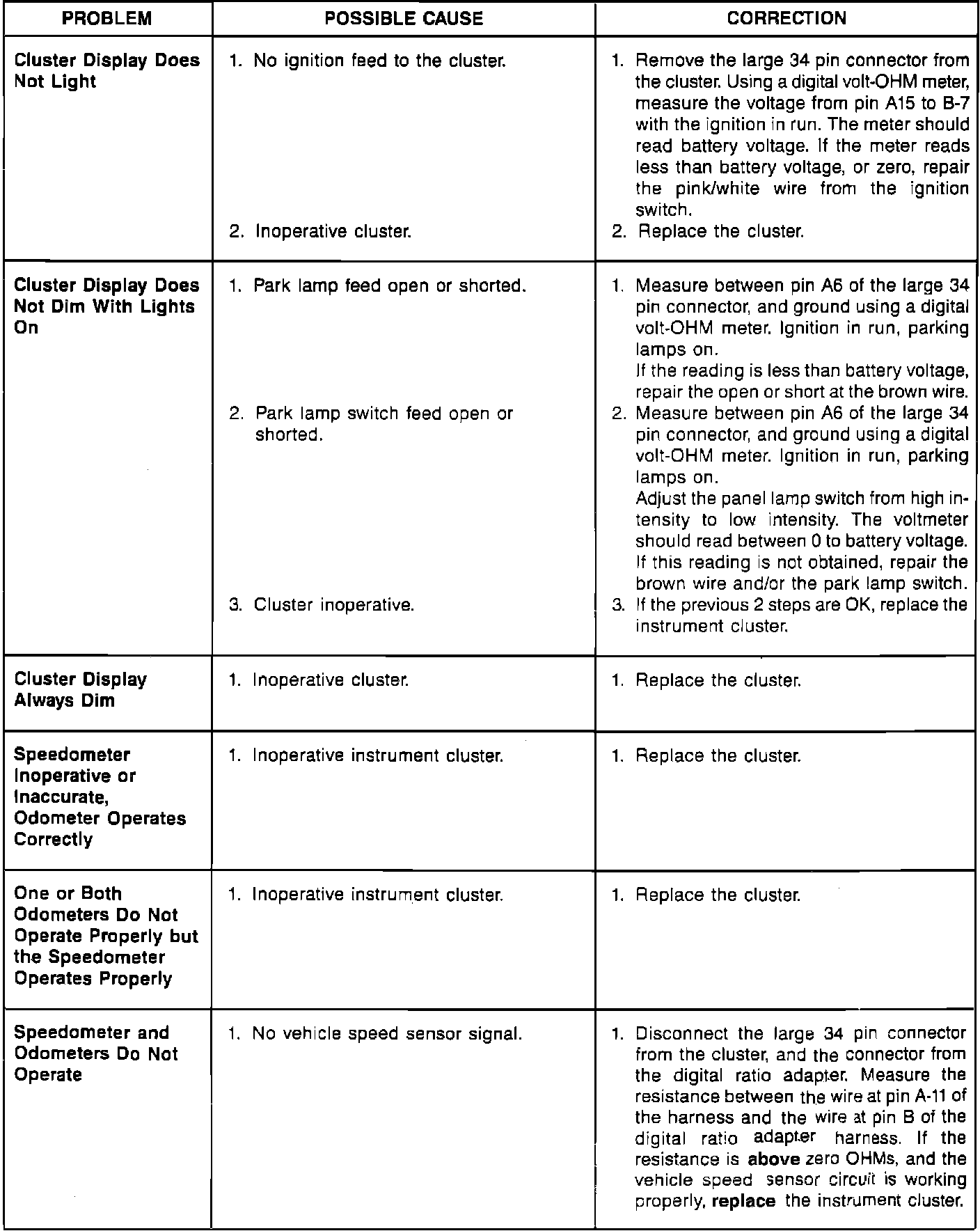

Electronic Instrument Cluster Diagnostics - Part 3 Of 3:
