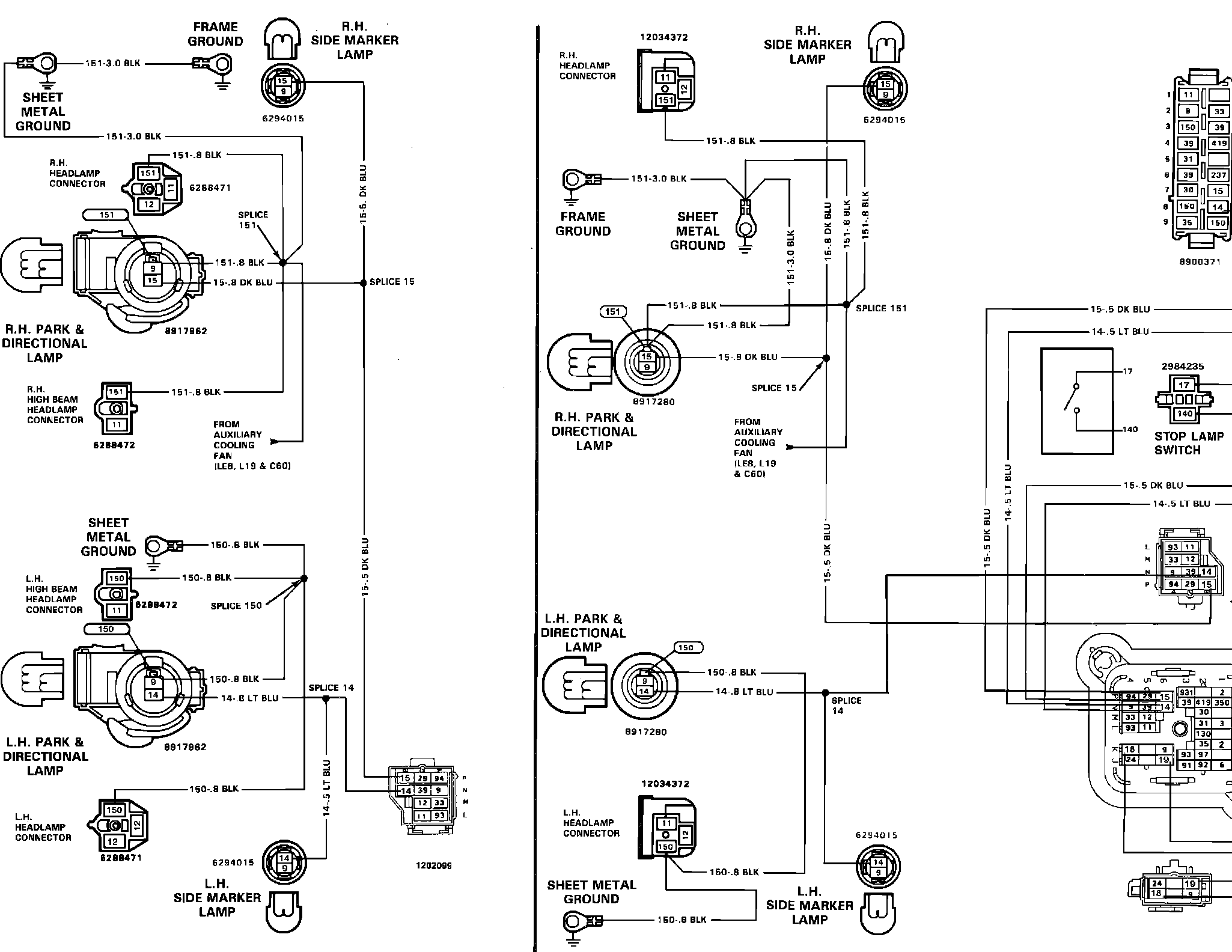

Hazard Warning Lamps
>>
Except Stepside Pick-Up & Dual Rear Wheel Models
Except Stepside Pick-Up & Dual Rear Wheel Models
�'�CCh�CHazard Lamps:
