90chevy29Number: 90-307-7A
Section: 7A
Date: August 1990
Corp. Bulletin No.: 067101R
Subject: TRANSMISSION OIL COOLER/OUTLET FITTINGS SEPARATOR TOOL
Model and Year: 1990 L VAN WITH AUTOMATIC TRANSMISSIONS
TO: ALL CHEVROLET DEALERS
During major component removal, a separator tool should be used to remove and replace the transmission oil cooler inlet and outlet pipe lines from the quick connect fittings located at the radiator on the above subject vehicles.

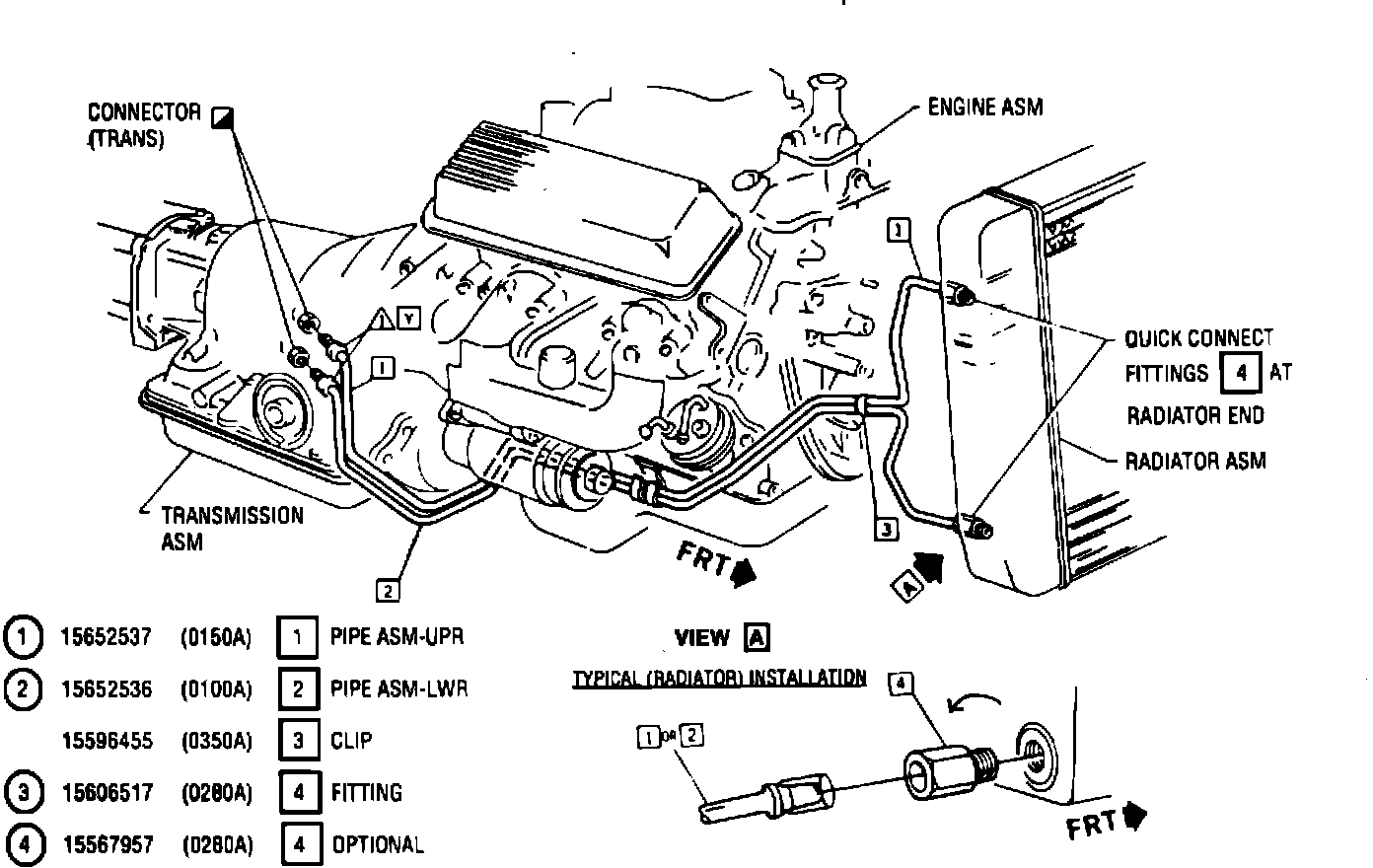

Figure No. 1:
Because access is limited to the transmission oil cooler inlet and outlet fittings at the radiator, fitting removal from the radiator is difficult. (Refer to Figure 1). Use of a separator tool allows easier removal of the pipe lines and aids in preventing possible pipe/line fitting damage.
Figure No. 2:
Kent-Moore has available a fuel line quick connect separator currently used in the automobile industry that can also be utilized for removal and replacement of the transmission oil cooler pipes on 1990 L vans equipped with automatic transmissions.
TOOL INFORMATION: (Refer to Figure 2).
Kent-Moore Separator Part Number - J37088-2A.
TOOL PROCUREMENT:
Kent-Moore Tool Division 29784 Little Mack Roseville, MI 48066-2298 Telephone (313) 774-9500 (USA) (416) 624-6295 (Canada)
We believe this source and their equipment to be reliable. There may be additional manufacturers of such equipment. General Motors does not endorse, indicate any preference for or assume any responsibilty for the products or equipment from this firm or for any such items which may be available from other sources.
