Multiple Junction Connector: Locations

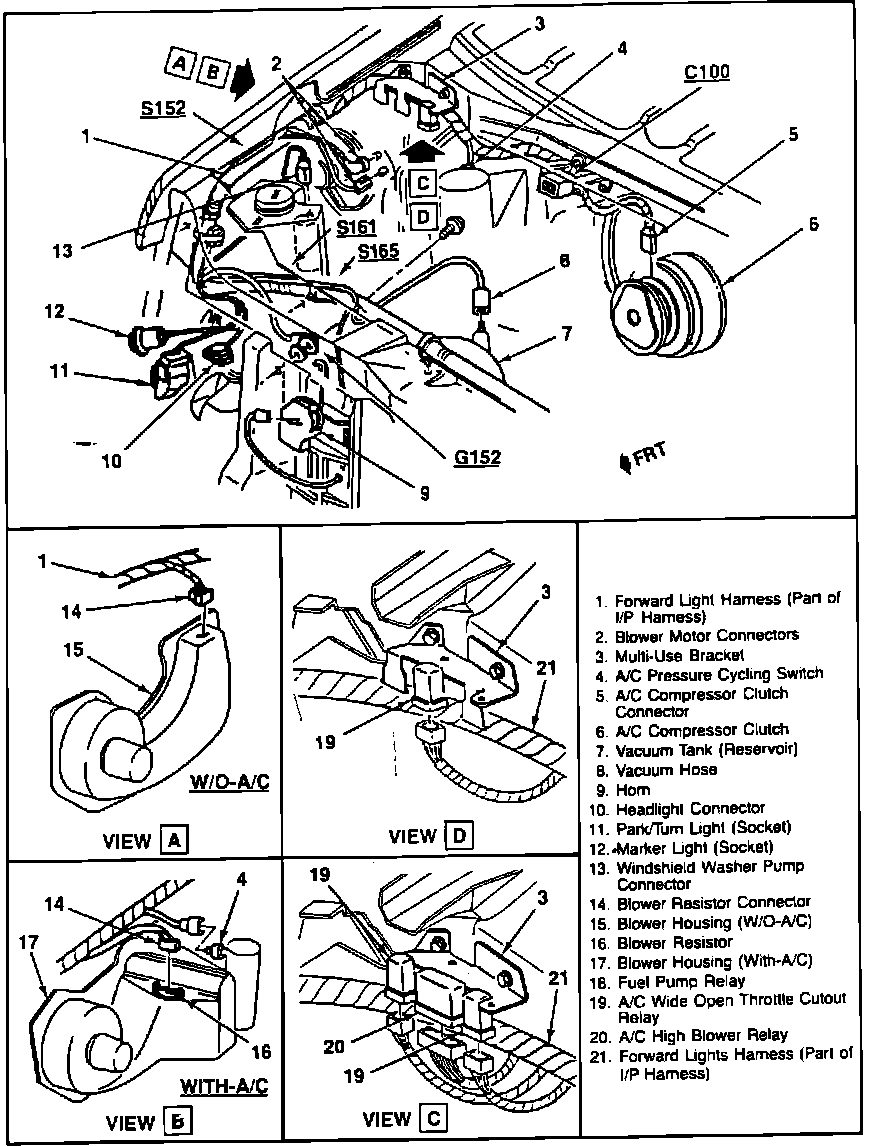

LH Side Of Engine Compartment:




LH Front Of Engine Compartment, Behind Battery
