Instrument Panel Glove Box - Rattle
90chevy03Number: 90-135-10
Section: 10
Date: January 1990
Corporate Bulletin No.: 961009
Subject: INSTRUMENT PANEL LOWER EXTENSION RATTLE
Model and Year: 1990 M/L VANS
TO: ALL CHEVROLET DEALERS
Some of the subject vans may experience a rattle from the instrument panel glove box area. A rattle can occurred the instrument panel lower extension is loose.
To verify, hold to cup holder on the instrument panel lower extension and try to move it fore and aft. If the extension moves, the rattle is likely to be coming from this area.
To correct, it is necessary to install foam adhesive backed strips to to back side of the instrument panel lower extension.

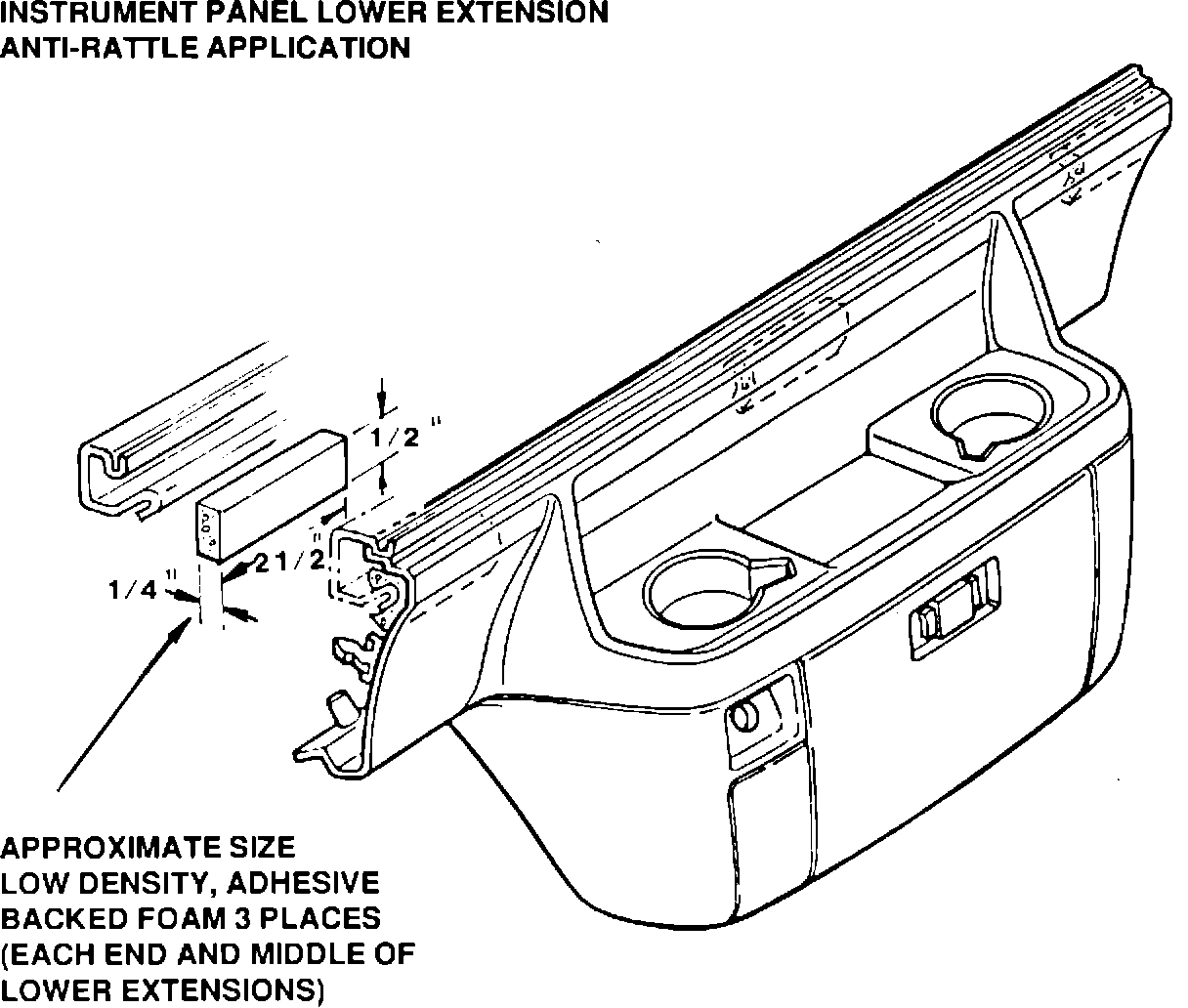

Figure 1:
INSTALLATION INSTRUCTIONS: (Refer to Figure 1.)
Remove the instrument panel lower extension.
Install three (3) foam adhesive backed strips (one strip at each end and one in the center) on the back top side of the extension in the area contacting the lower curl of the metal retainer located on the instrument panel.
The strips should be approximately 2-1/2" long, 1/4" thick and 1/2" wide.
PARTS INFORMATION:
Foam backed adhesive strips can be purchased locally in roll form and cut to length. This is not a service part at GMSPO.
Labor Operation Number: T8075
Labor Time: 0.2 Hr.
