Roof Luggage Rack - Installation

9218chevy05

Number: 90-129-10

Section: 10

Date: January 1990

Corporate Bulletin No.: 961007


Subject:
ROOF LUGGAGE RACK INSTALLATION


Model and Year:
1989-90 M VANS 1990 L VANS










TO: ALL CHEVROLET DEALERS

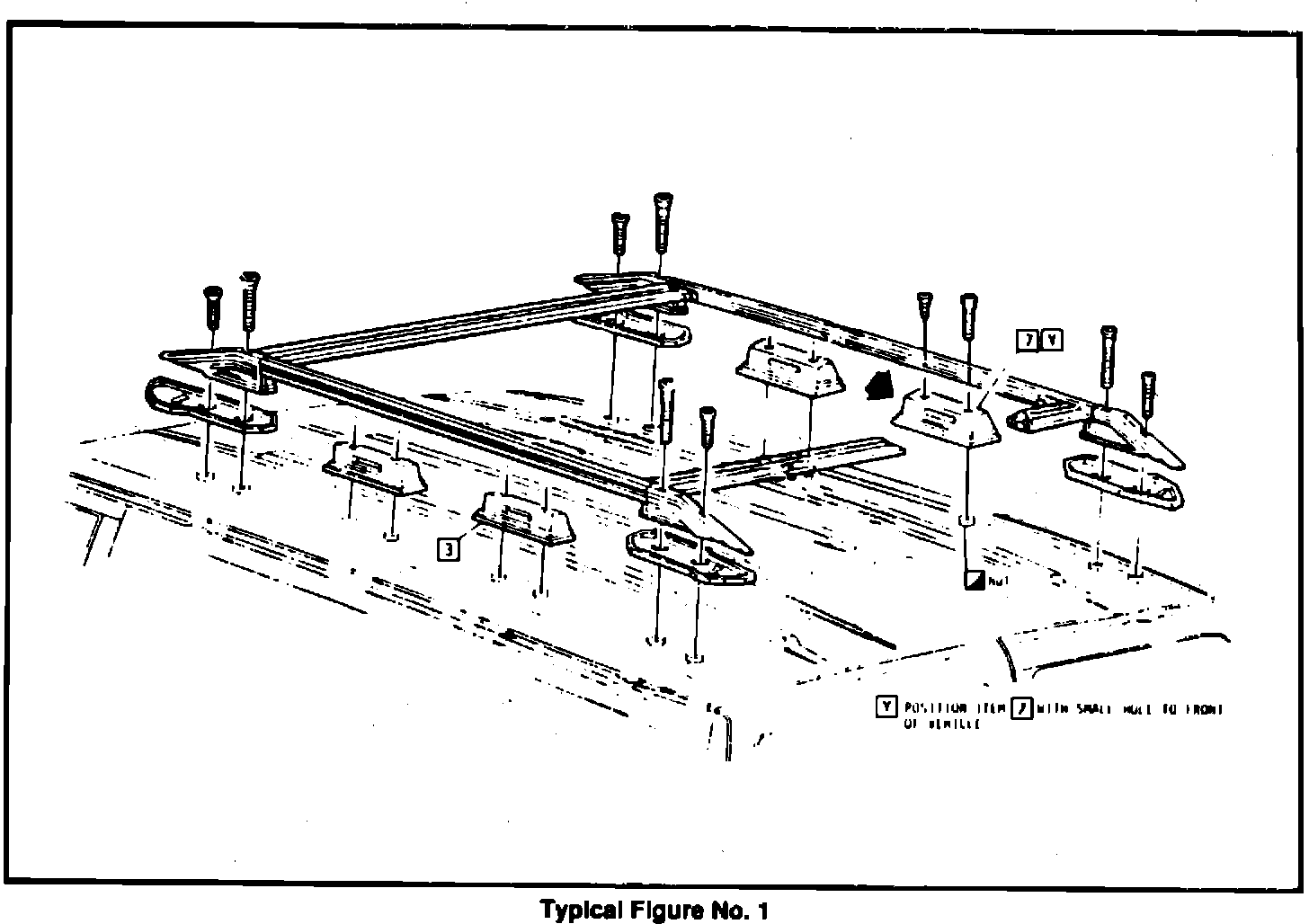

When installing Option V54 (roof luggage rack) on the above subject vehicles the RH center support roof hole has been deleted on the standard length vans. Four center support roof holes have been deleted on the extended vans.

These holes have been deleted to prevent interference with the seat belt assemblies on the middle seat on the standard length vans and to keep all attaching locations behind the roof bows on extended vans.

DO NOT drill additional holes in the vehicle roofs. Follow the installation instructions dated June 30, 1989 provided with the luggage rack and use screws provided in the subject center support luggage rack holes.
