Automatic Transmission Kickdown Solenoid
Automatic Transmission Kickdown Solenoid

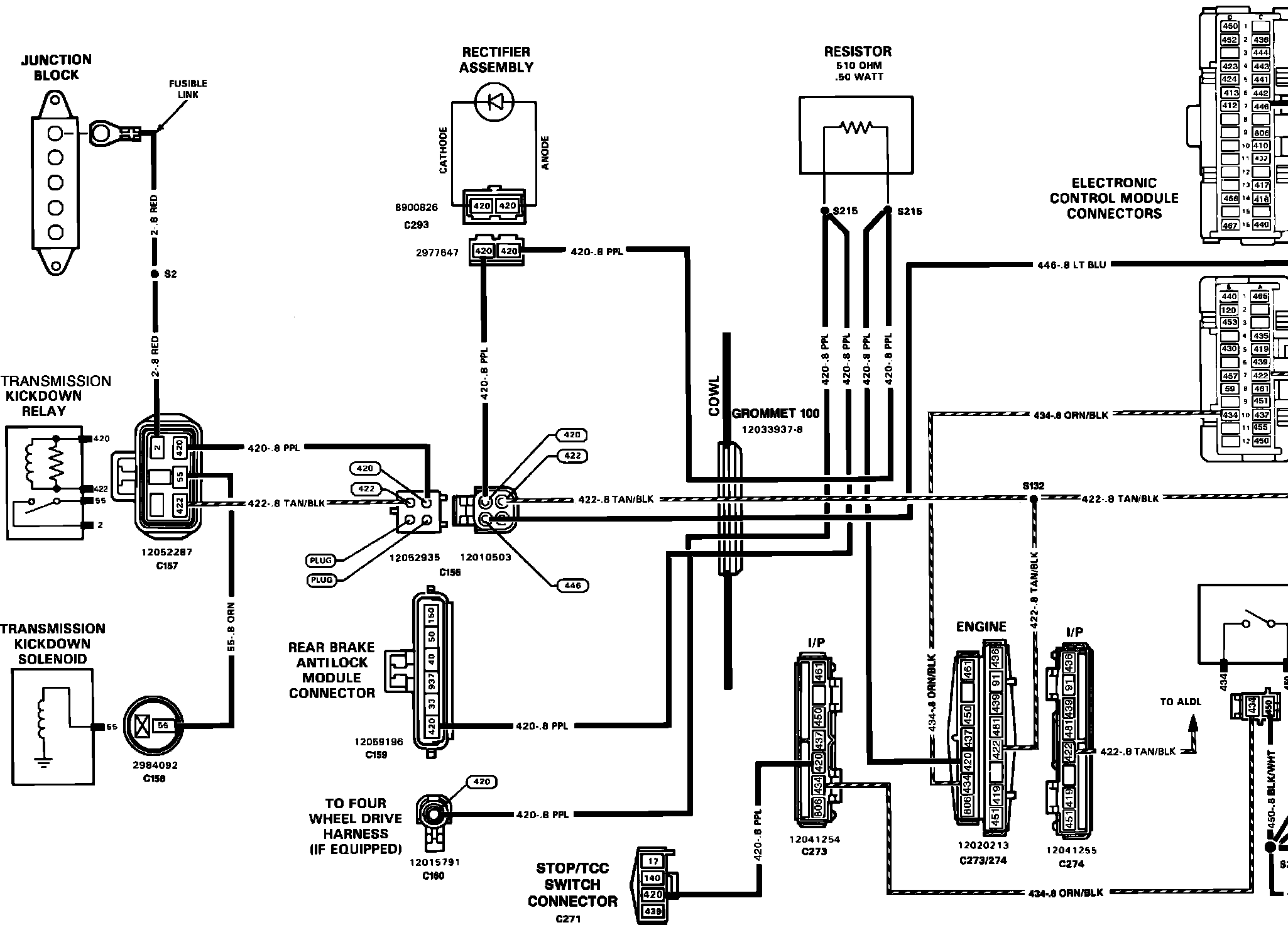

!�a#Automatic Transmission Kickdown Solenoid:
