Home
>>
Chevy Truck
>>
1990
>>
C 3500 Truck 2WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Battery
Battery

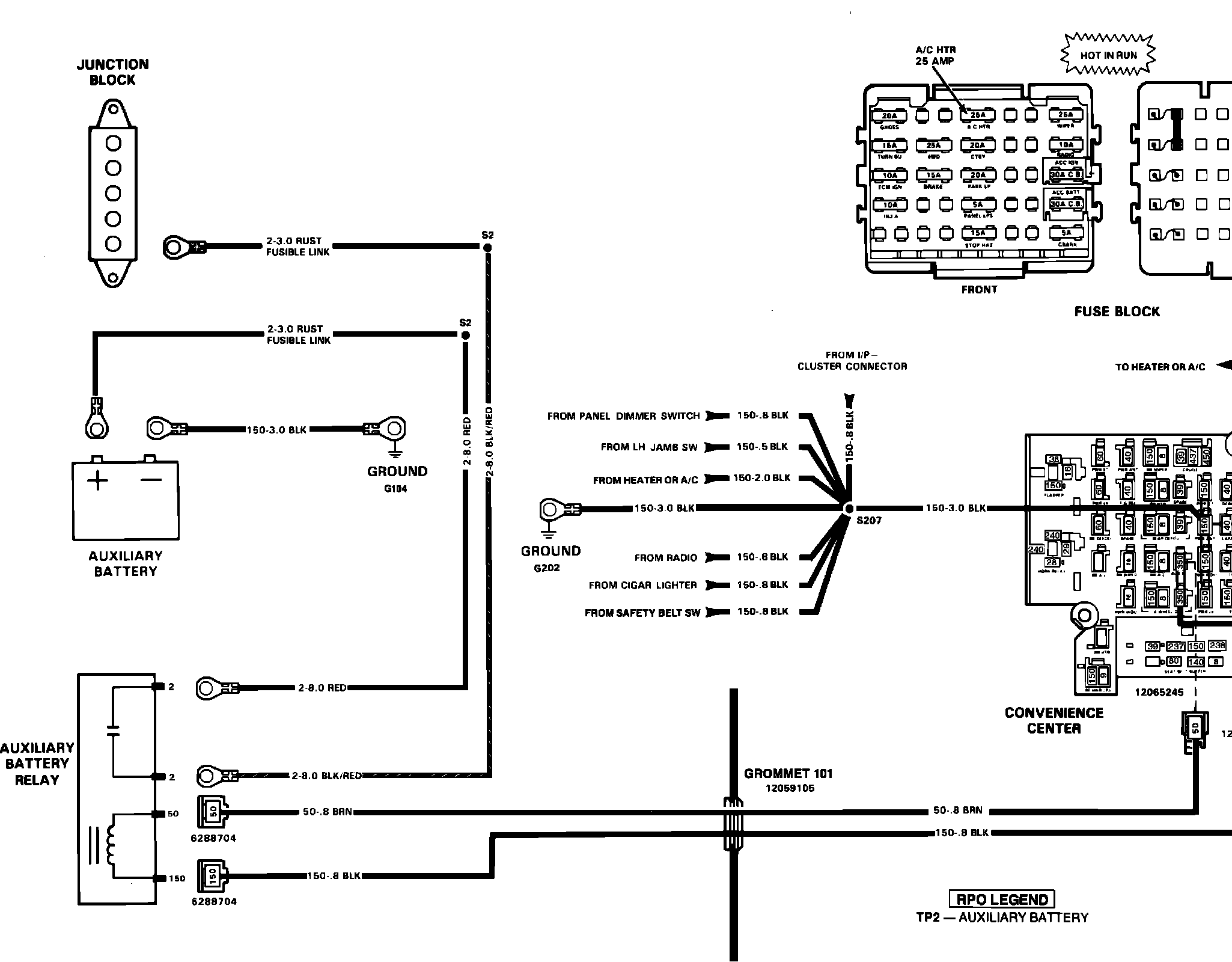

JTQ3Auxiliary Battery:
