Home >> Chevy Truck >> 1990 >> G 10 Van V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device

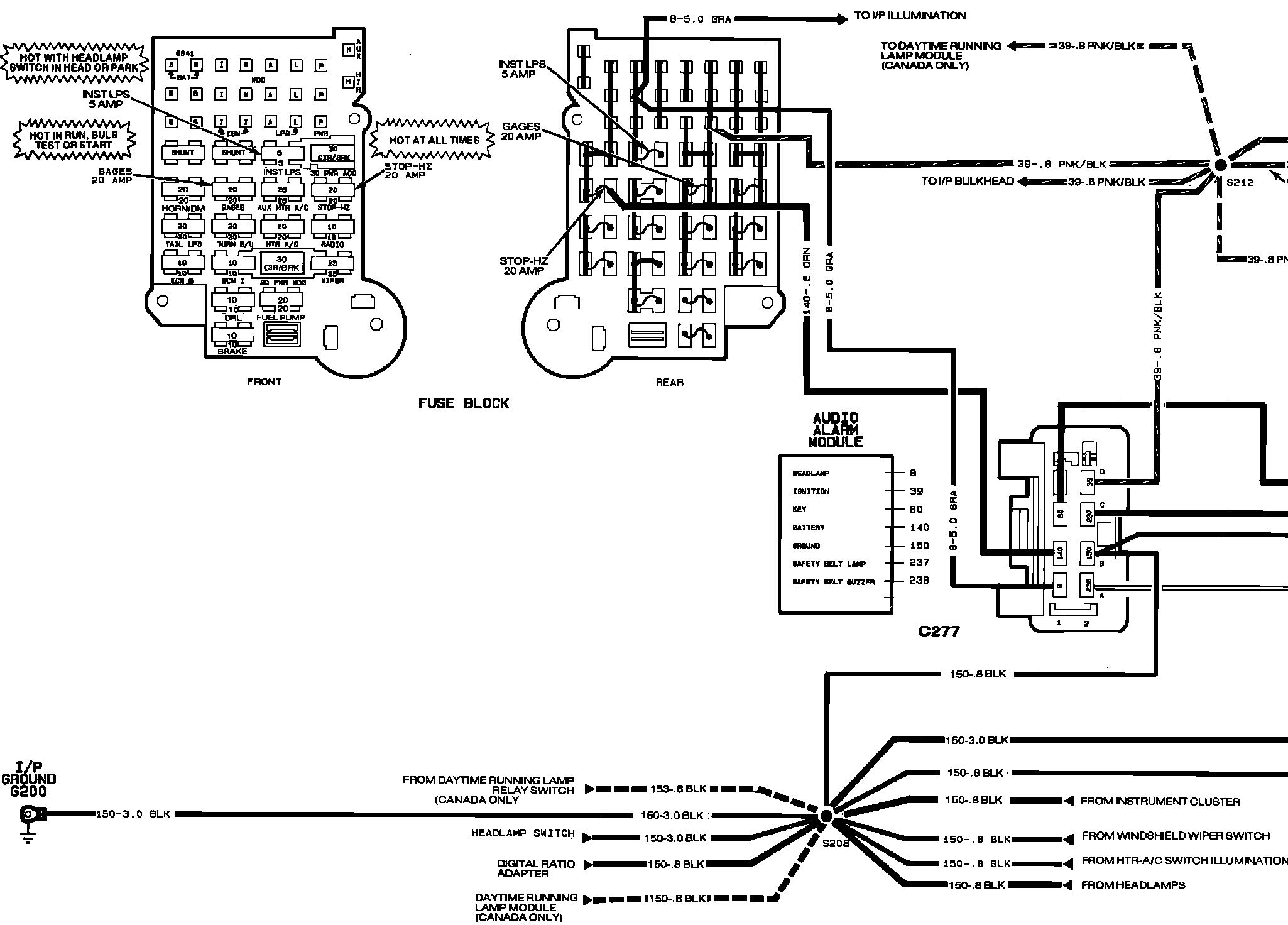

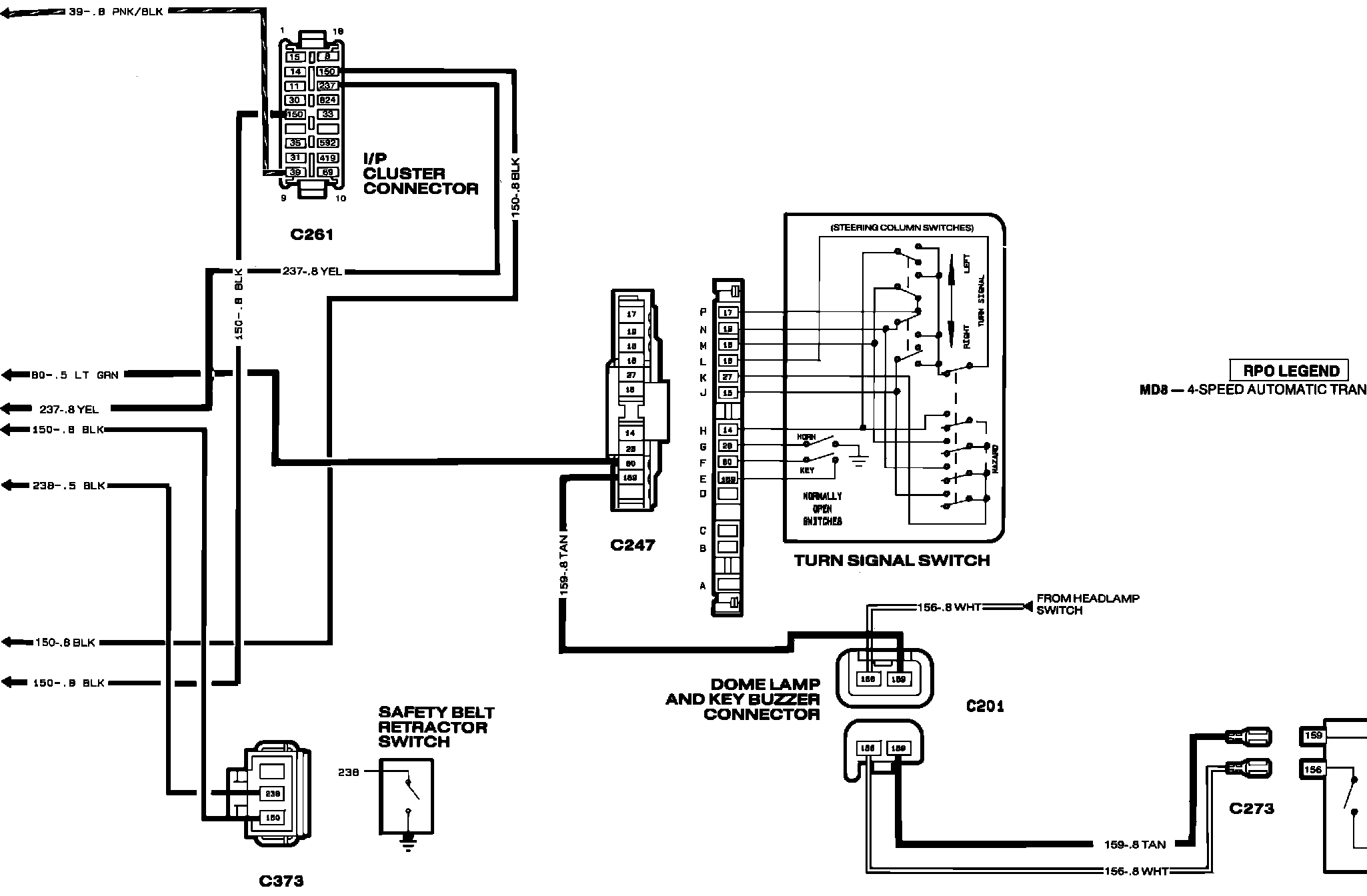

Audible Warning Device

E�~@Warnings and Indicators: Audio Alarm Module:



�@Warnings and Indicators: Audio Alarm Module:
