Home
>>
Chevy Truck
>>
1990
>>
G 10 Van V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
2-Door Van
2-Door Van

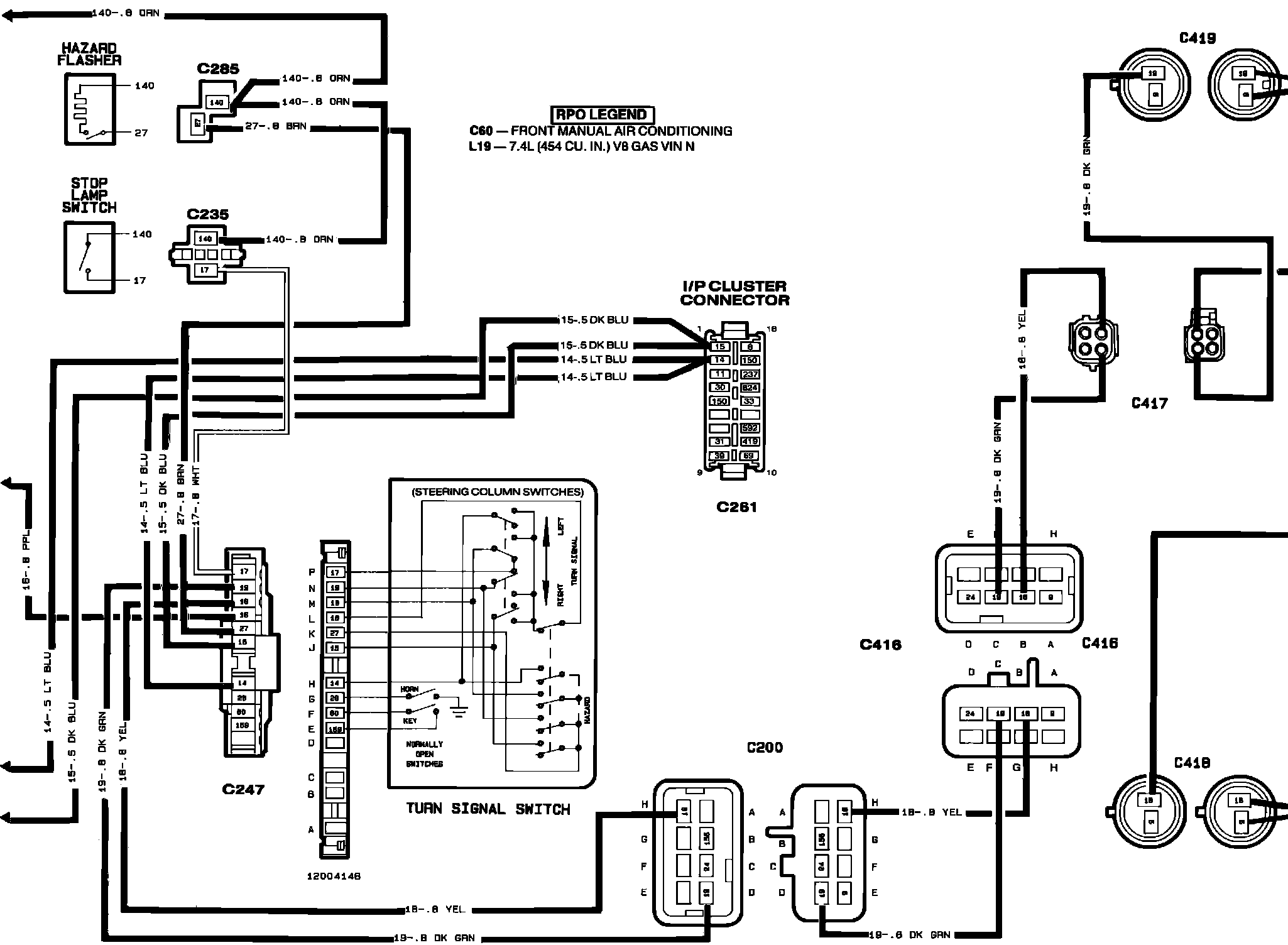

[��BLamps: Stop, Turn, and Hazard (2-Door Cab Van):
W��BLamps: Stop, Turn, and Hazard (2-Door Cab Van):
