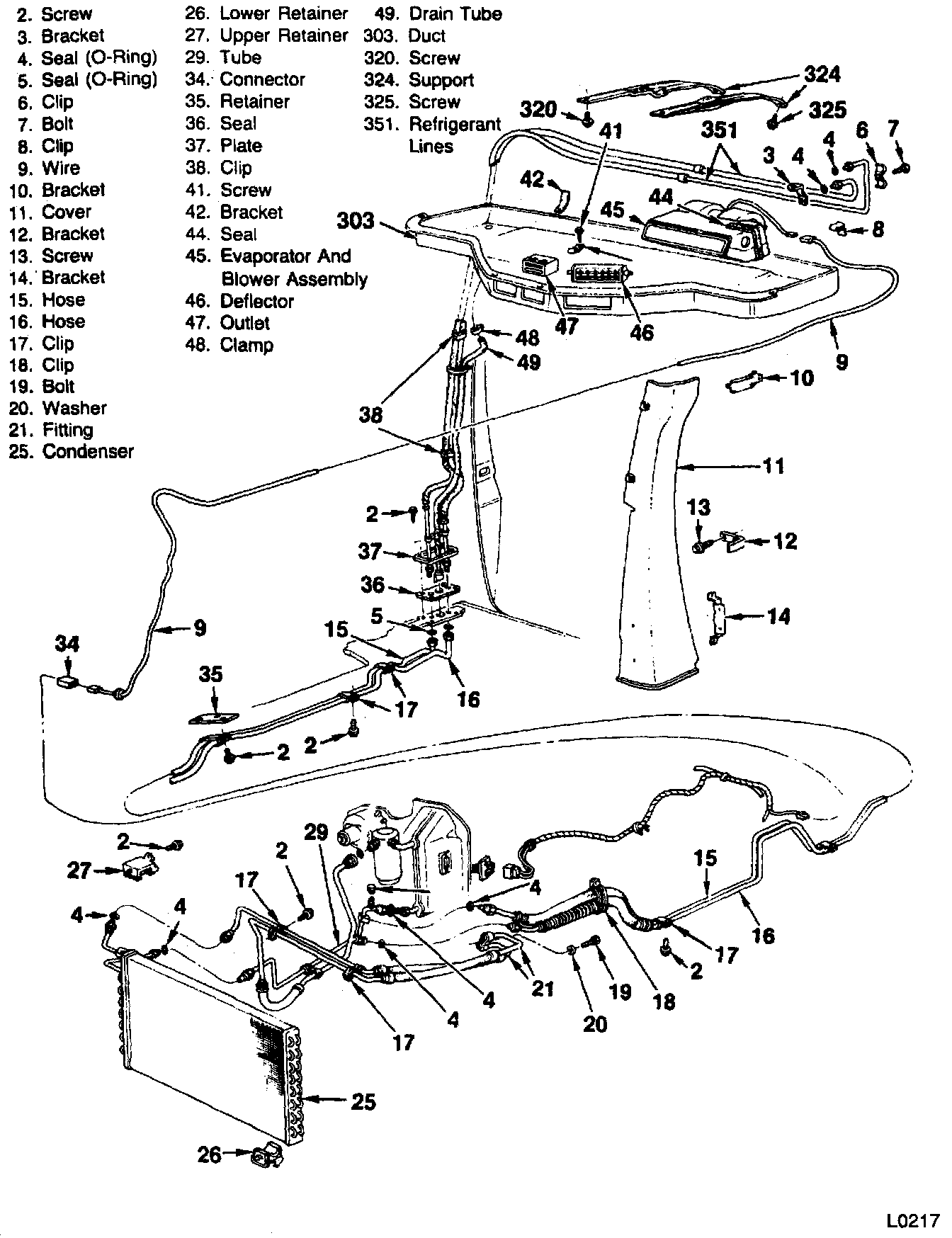

Rear Interior Roof Mounted Evaporator Hoses
Rear Interior Roof Mounted Evaporator Hoses
Rear Interior Roof Mounted Evaporator Hoses - Component View:
