System Diagnosis
System Diagnosis
Electrical System Diagnostic Chart (1 Of 2):

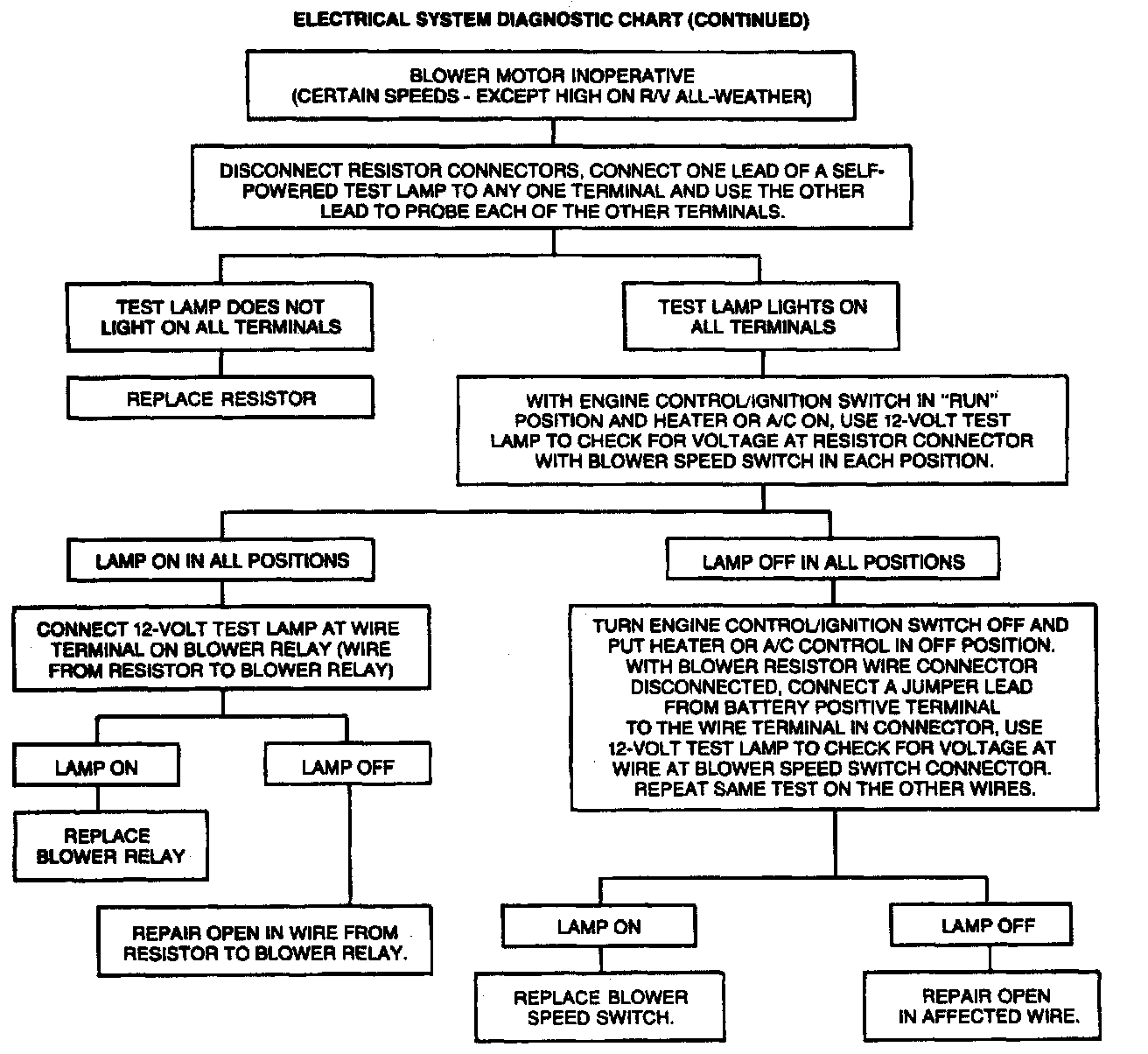

Electrical System Diagnostic Chart (2 Of 2):

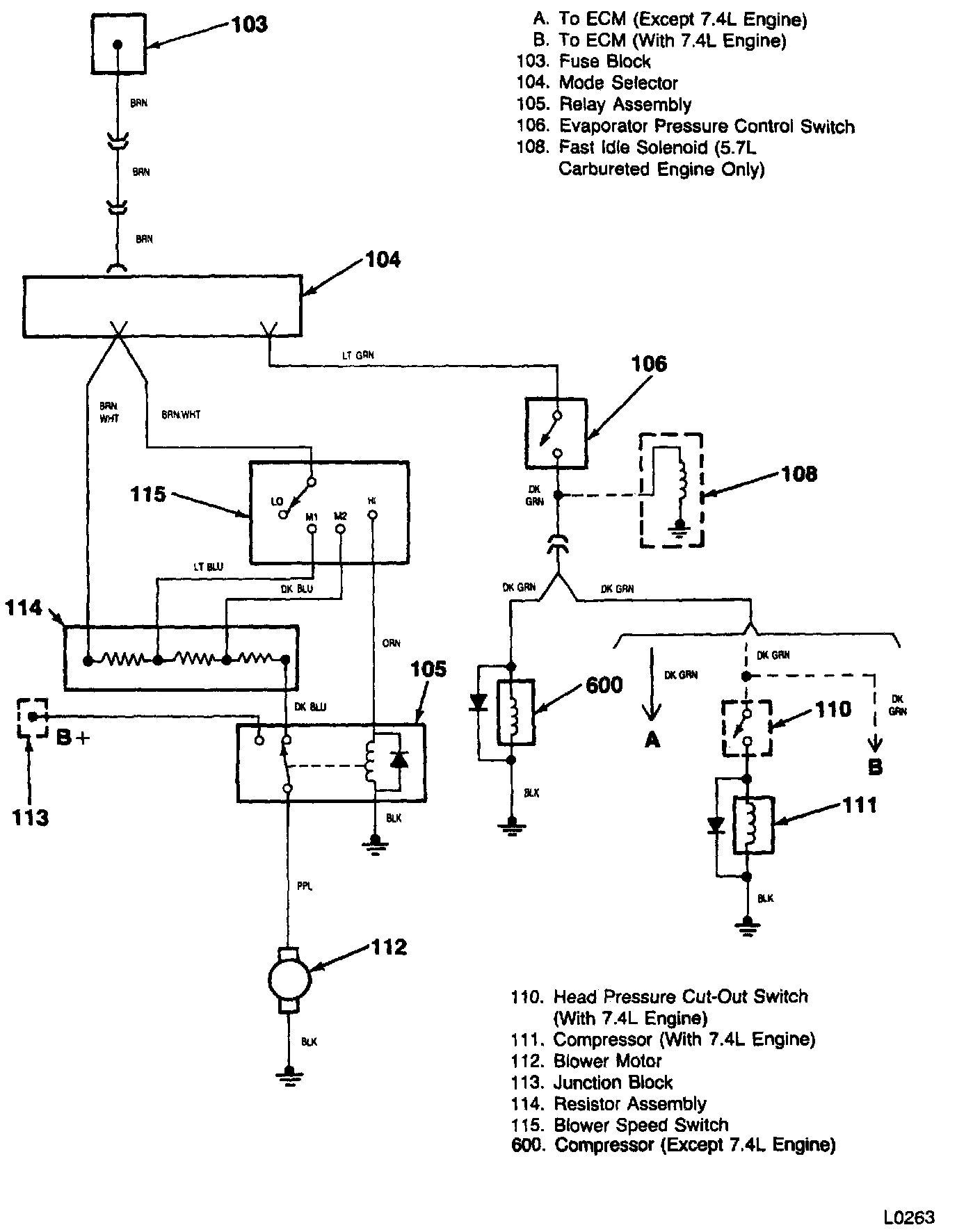

Electrical System Diagram - Typical:
