Home
>>
Chevy Truck
>>
1990
>>
G 10 Van V8-305 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

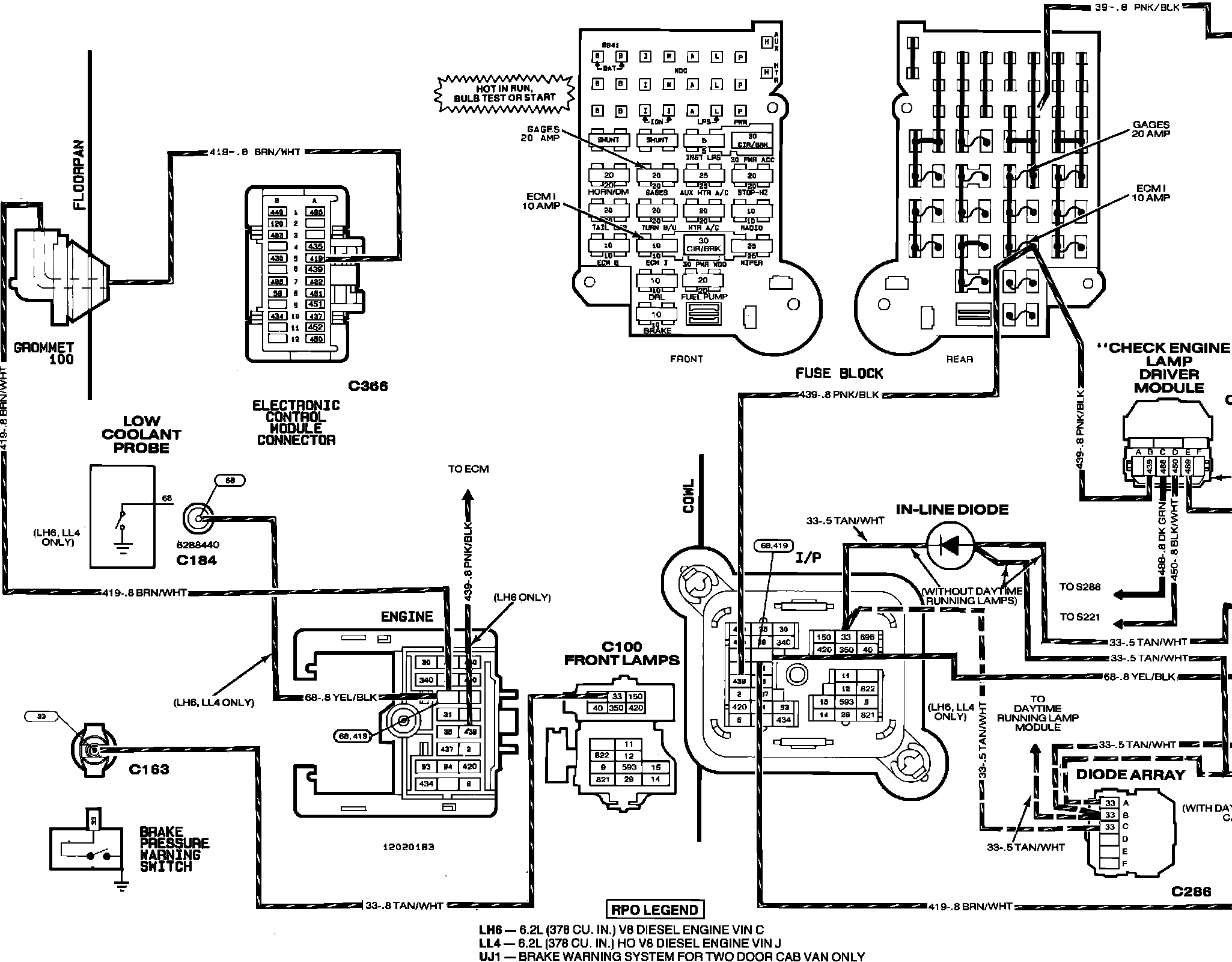

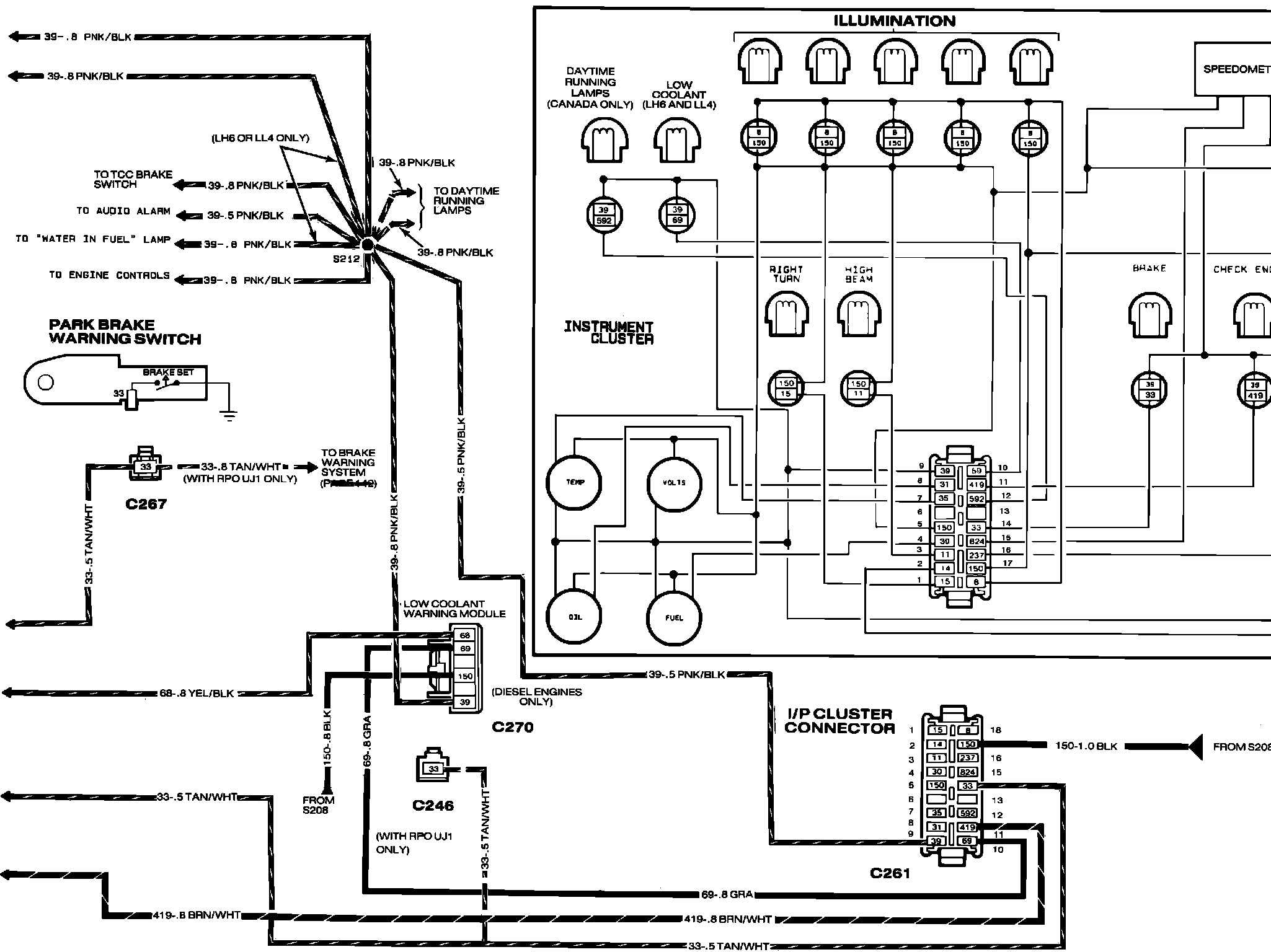

B��AInstrument Panel Indicators:
:�AInstrument Panel Indicators:
