Chevy Truck
>>
1990
>>
G 20 Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Glow Plug Controller

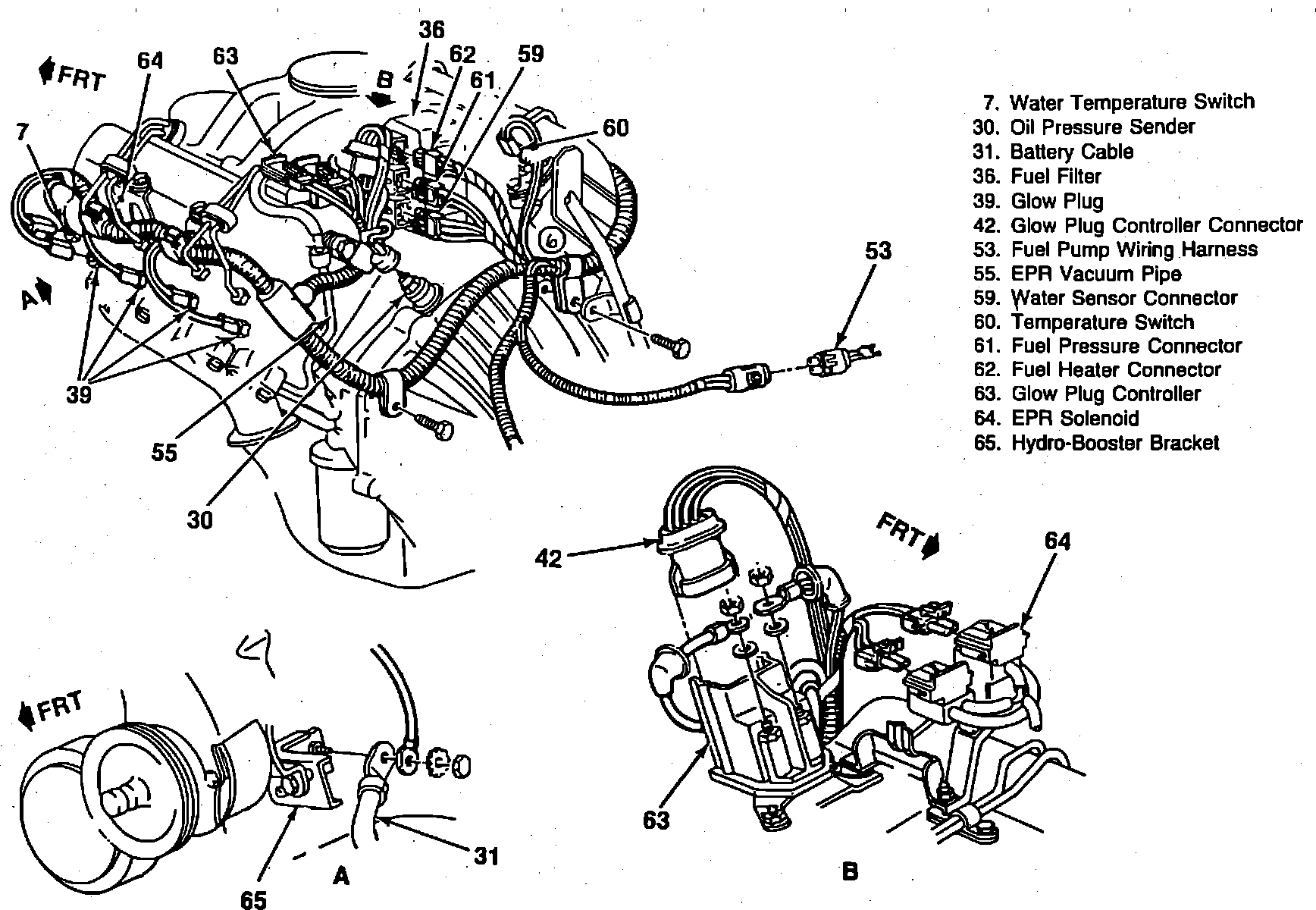

Glow Plug Controller
Engine Wiring (LH Side):
LH Rear Of Engine
Applicable to: G Series w/V8-379/6.2L Diesel
