Assembly

1. Lubricate new inner and outer clutch piston seals and grooves with transmission fluid.

2. Install seals on pistons with lips facing away from spring guide.

3. Using tool J-21363 or equivalent, install clutch piston on center support

4. Install spring guide and clutch release springs.

5. Instal spring retainer and snap ring.

6. Install oil seal rings on center support hub.

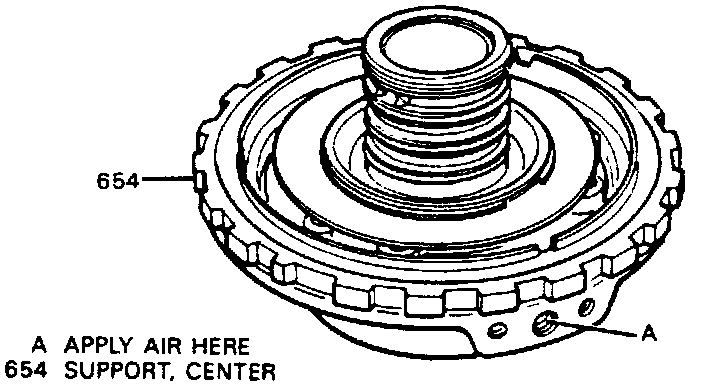

7. Air check operation of intermediate clutch piston.
