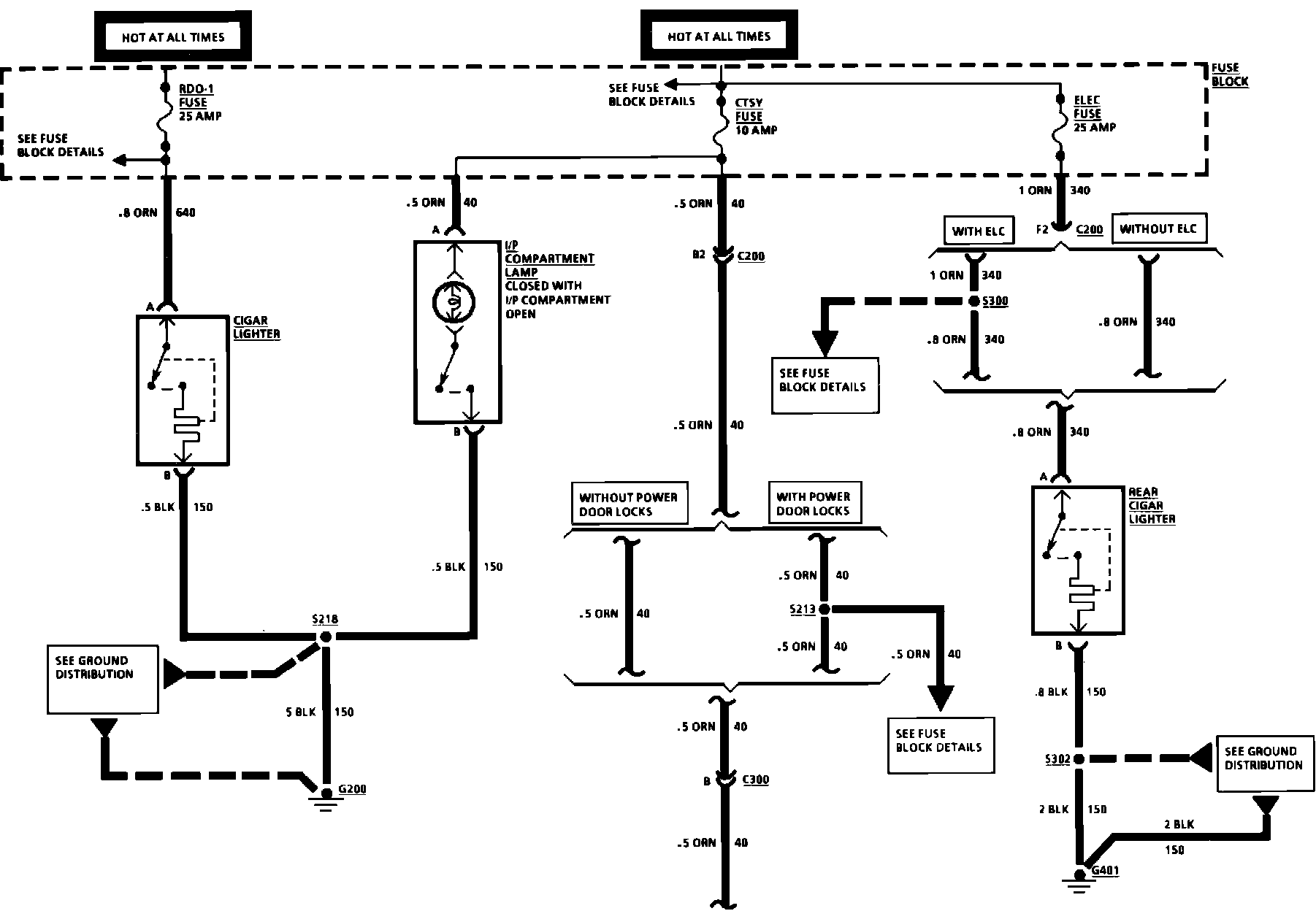

Cigarette Lighter

Lamps: Interior: Courtesy, Dome, I/P Compartment, Cigar Lighter, Rear Cigar Lighter:
