Electronic Level Control (ELC)

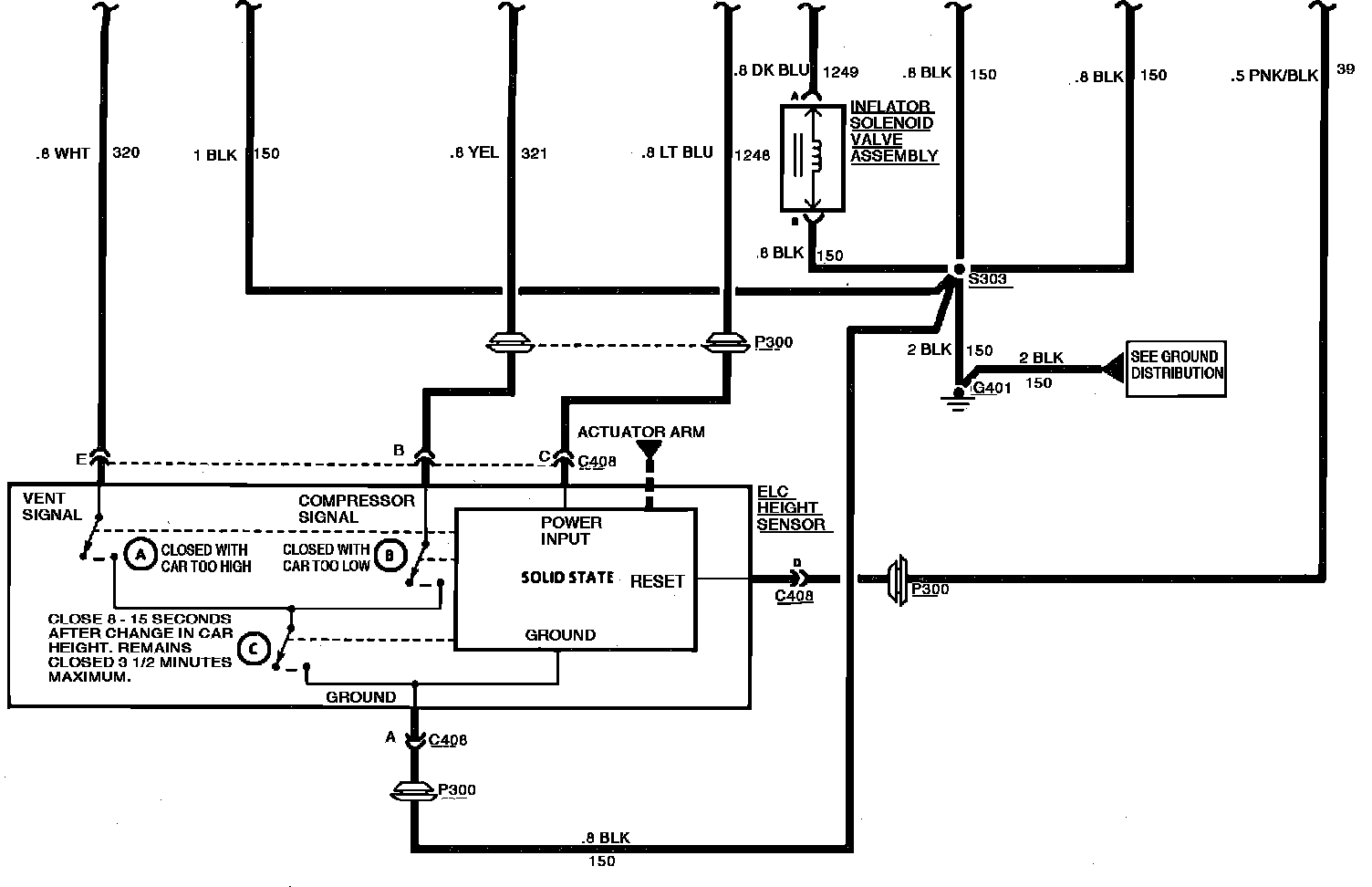

Fig. 2 ELC Wiring Circuit (Part 1 Of 2):



Fig. 2 ELC Wiring Circuit (Part 2 Of 2):
