Home >> Chevy Truck >> 1990 >> Lumina APV V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp >> Part 4 of 4

Part 4 of 4

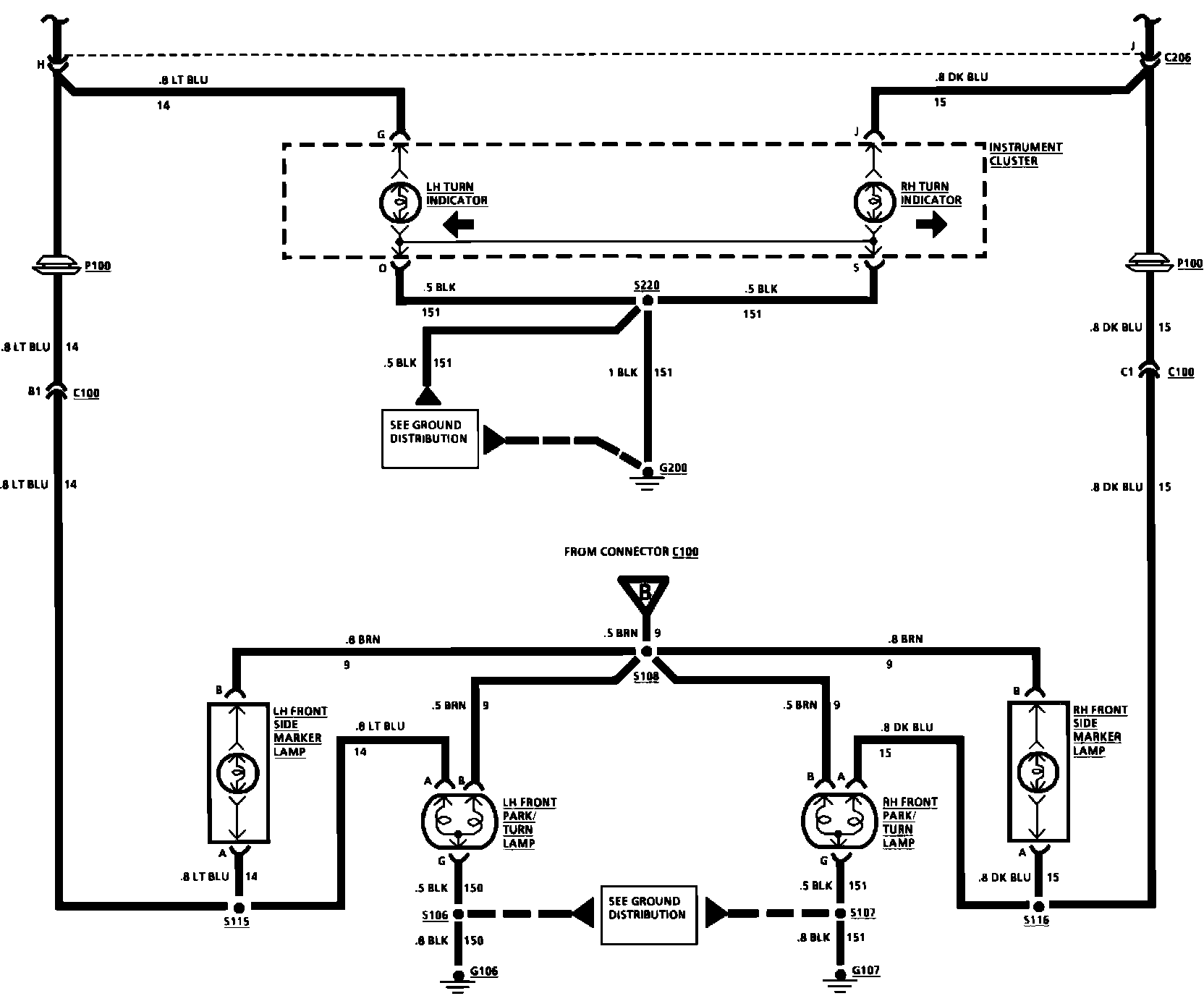

Lamps: Exterior: Turn/Hazard/Stop/Tail/Marker/License (Part 4 Of 4):
