Turn Signals
>>
Turn Signal Indicator
Turn Signal Indicator

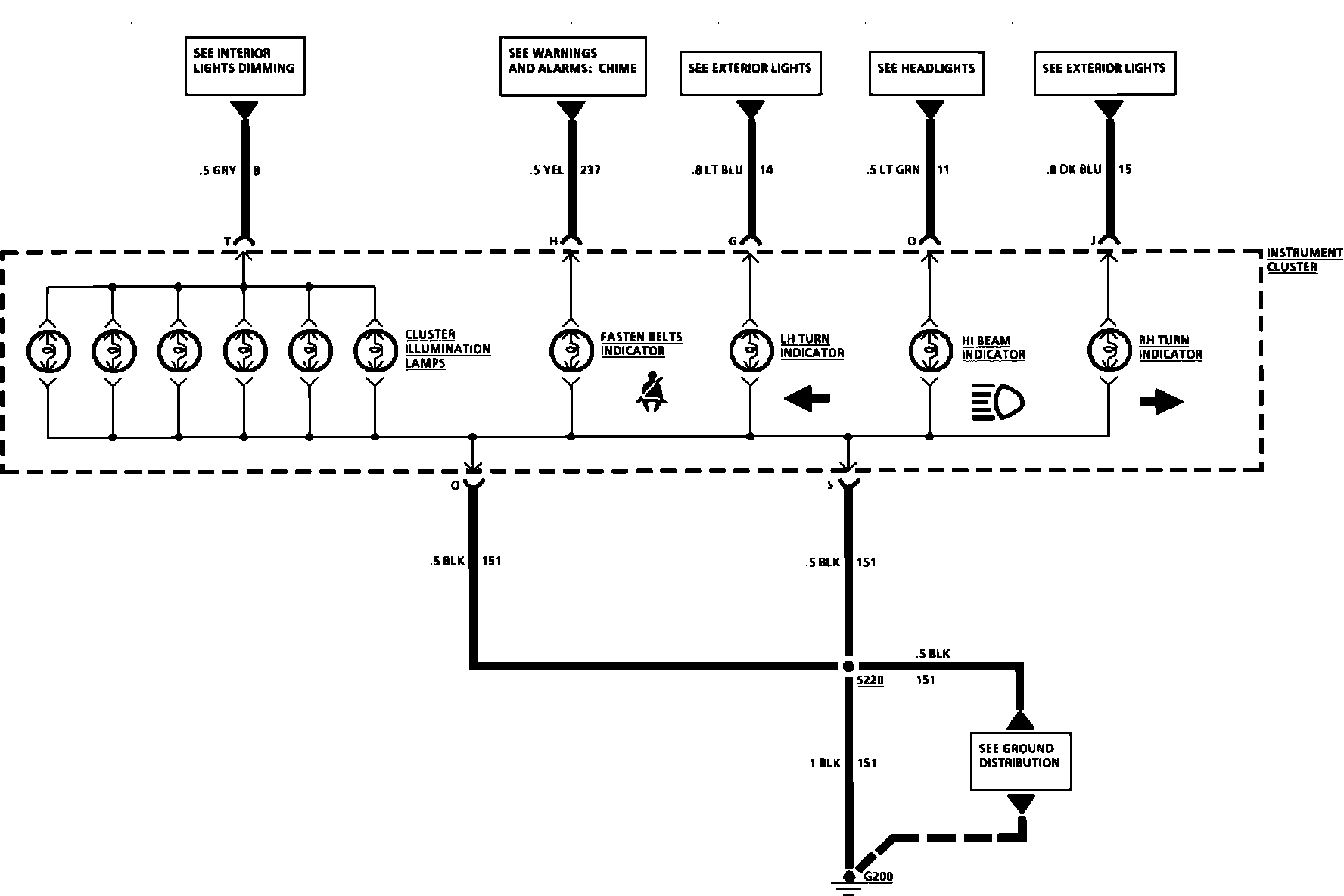

Instrument Illumination/Warning/Indicators: Fasten Belts, LH-Turn, Hi Beam, RH-Turn:
