Chevy Truck
>>
1990
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>

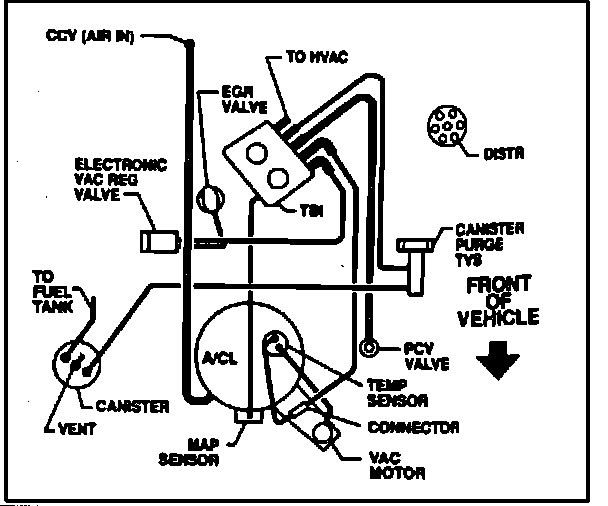

Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems
Calif and Federal (Auto Trans):
