Blower Motor: Service and Repair

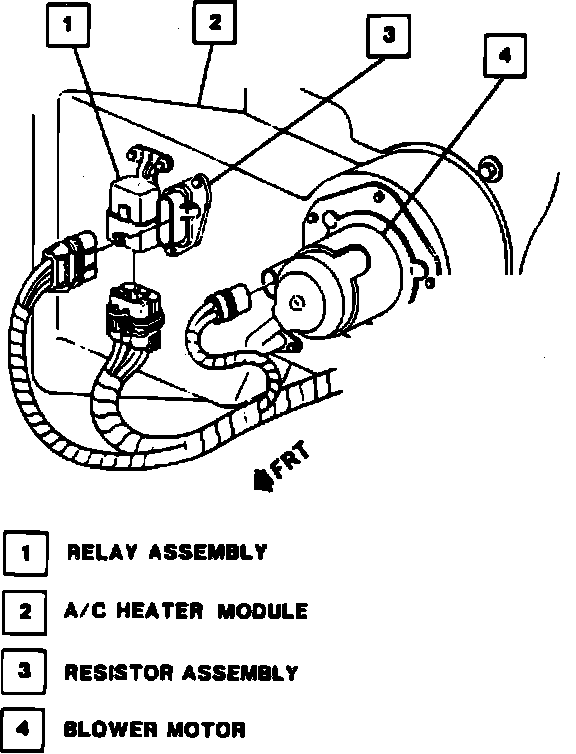

Fig. 19 Front Blower Motor Removal:

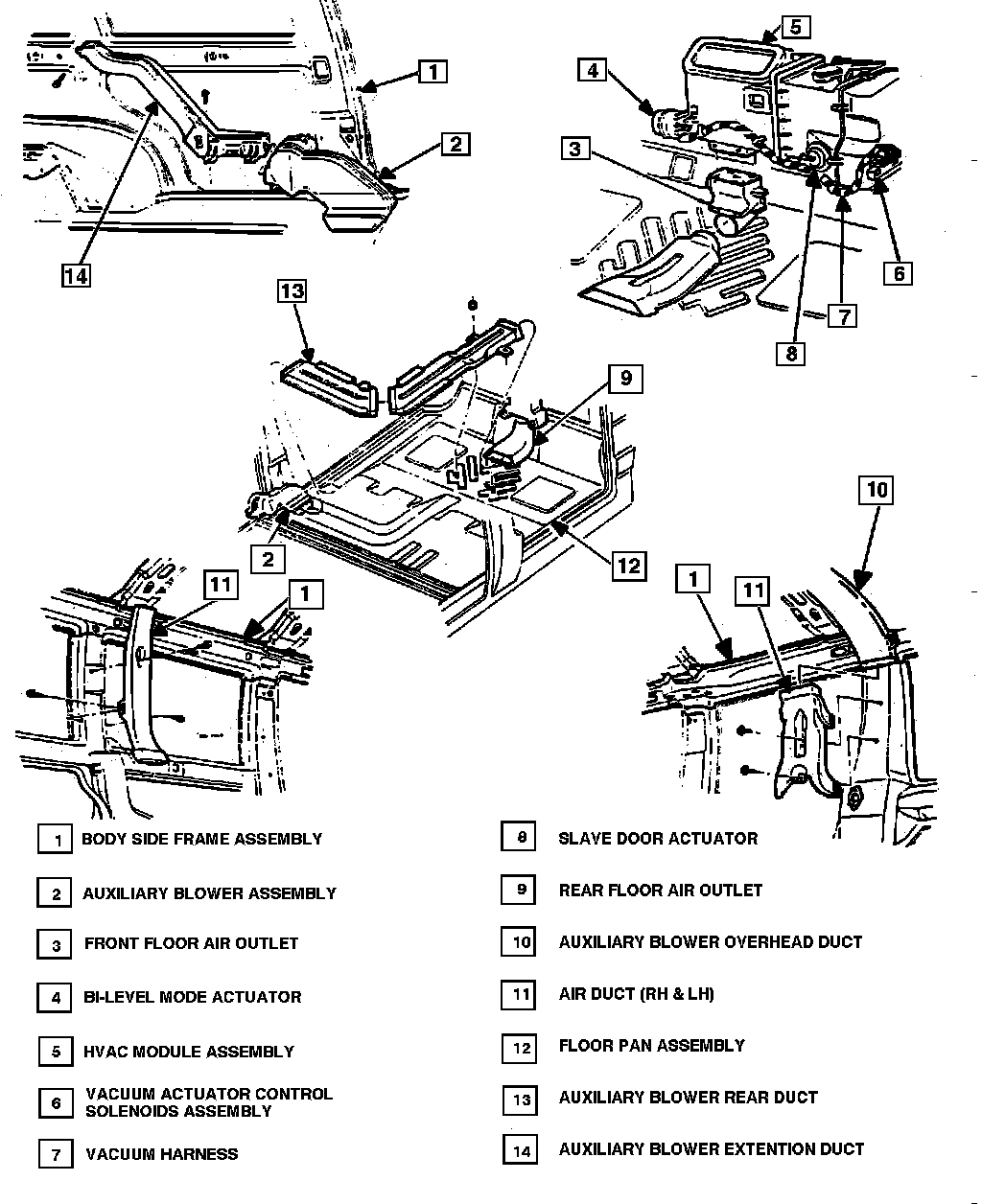

Fig. 20 Rear Auxiliary Blower Motor Removal:

FRONT
1. Disconnect battery ground cable.
2. Remove air cleaner, then remove left side windshield wiper transmission arm linkage.
3. Disconnect instrument panel harness electrical connector from blower motor, Fig. 19.
4. Remove blower motor assembly retaining screws and blower motor.
5. Reverse procedure to install.

REAR AUXILIARY
1. Disconnect battery ground cable.
2. Remove left front quarter trim panel.
3. Remove motor housing to case attaching screws, then the motor and fan retaining nut, Fig. 20.
4. Reverse procedure to install.
