Air Delivery and Temperature Control (C40)
Air Delivery and Temperature Control (C40)

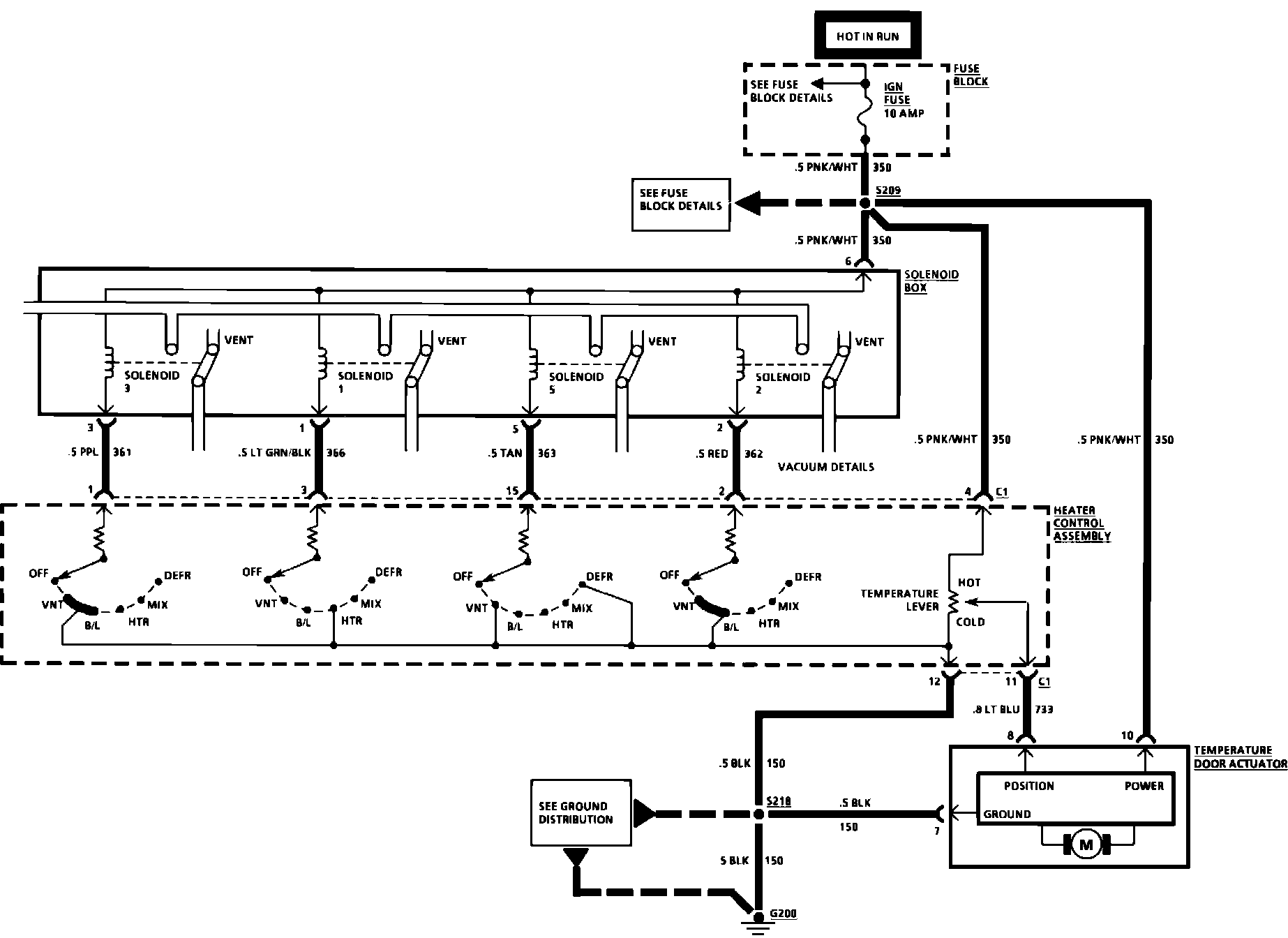

Heater: Air Delivery and Temperature Control (C40):
