A/C Diagnosis W/Variable Displacement Orifice Tube
>>
Chart C - V-5 System
Chart C - V-5 System

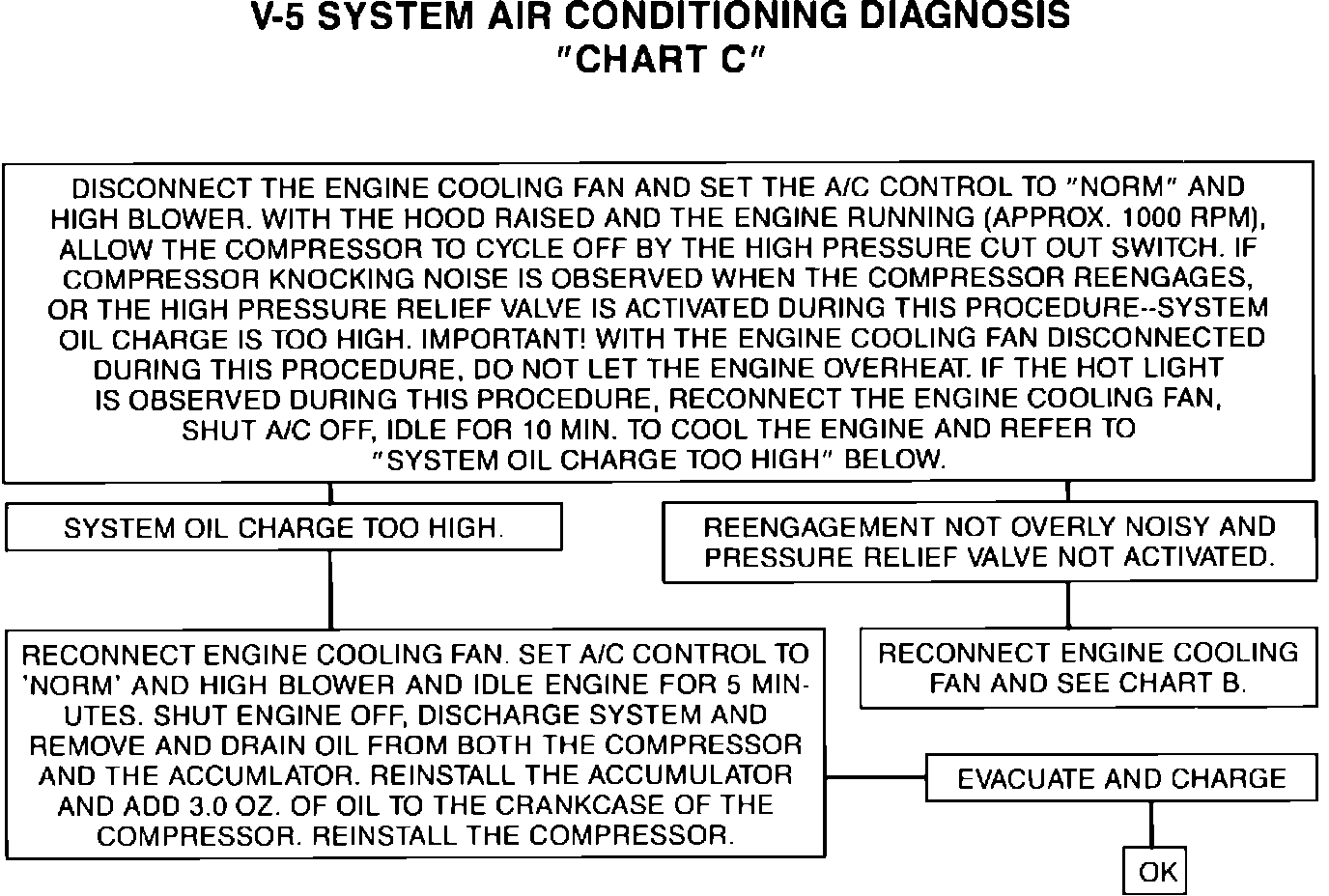

Fig. 22c A/C cooling system diagnosis (Part 3 of 5). Models w/DA-V5 (VDOT system) compressor:
