Instrument Cluster / Carrier: Service and Repair

Fig. 12 Instrument Cluster Trim Pad Removal:

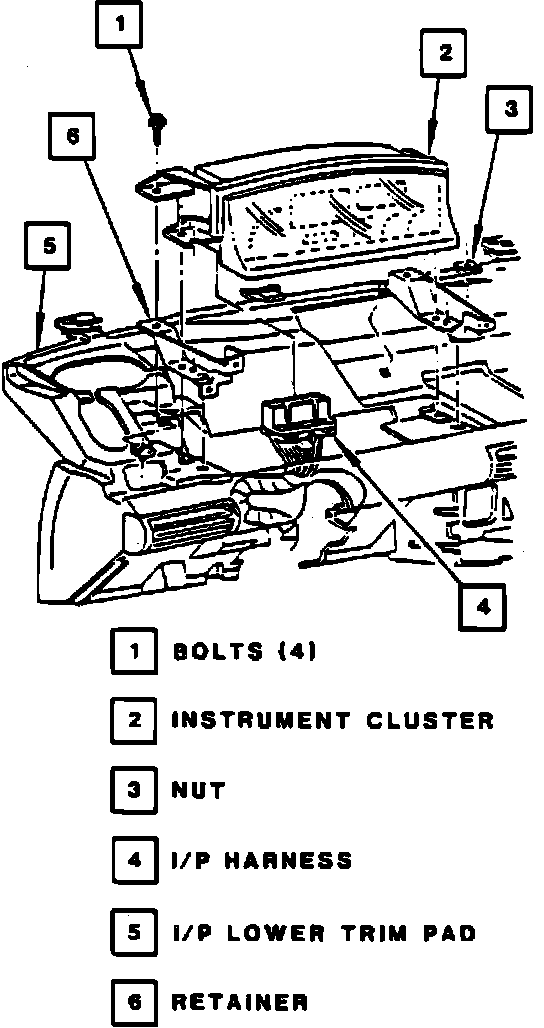

Fig. 13 Instrument Cluster Removal:

1. Remove negative battery cable.
2. Remove glove box door access screws securing lower I/P trim pad assembly to I/P trim pad assembly, Fig. 12.
3. Remove screws securing instrument cluster trim panel to I/P trim pad assembly.
4. Remove screw securing headlamp switch pod to cluster trim panel.
5. Disconnect harness connector to headlamp switch pod.
6. Remove windshield wiper switch pod to trim panel retaining screw.
7. Pull wiper switch pod from trim panel, then disconnect harness connector, Fig. 13.
8. Remove two cluster trim panel to cluster mounting bracket retaining screws located in switch pods openings.
9. Remove steering column opening filler panel.
10. Remove shift cable clip, then disconnect I/P electrical harness connector from instrument cluster.
11. Remove screws from left and right side cluster retaining brackets, then remove instrument cluster.
12. Reverse procedure to install.
