R 20 P/U 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Rear-Wheel (RWAL)
Rear-Wheel (RWAL)

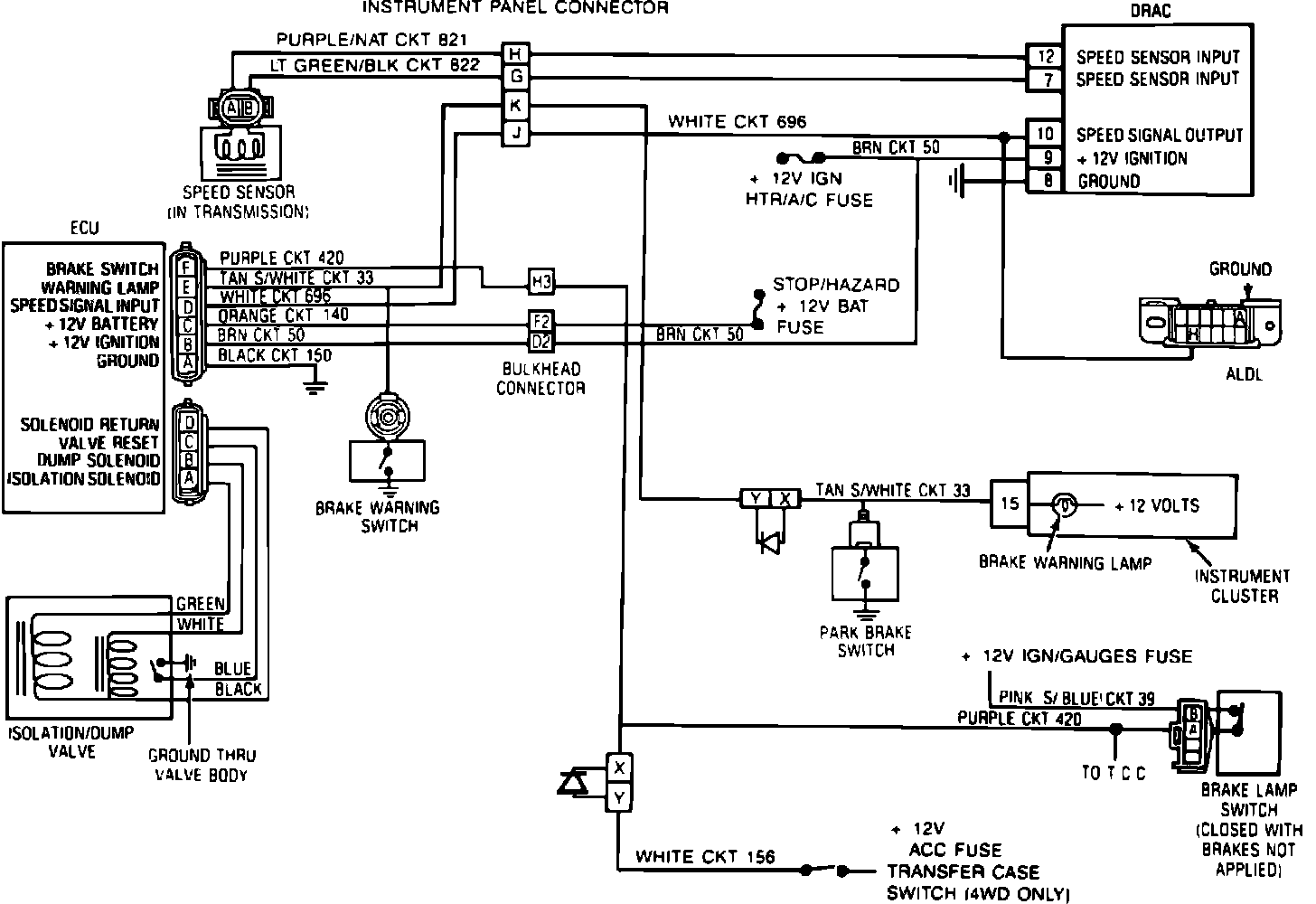

Fig. 7 Rear Wheel Anti-Lock (RWAL) System Wiring Diagram. 1989-91 R/V Models:
