Home
>>
Chevy Truck
>>
1990
>>
R 20 P/U 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
With Air Conditioning

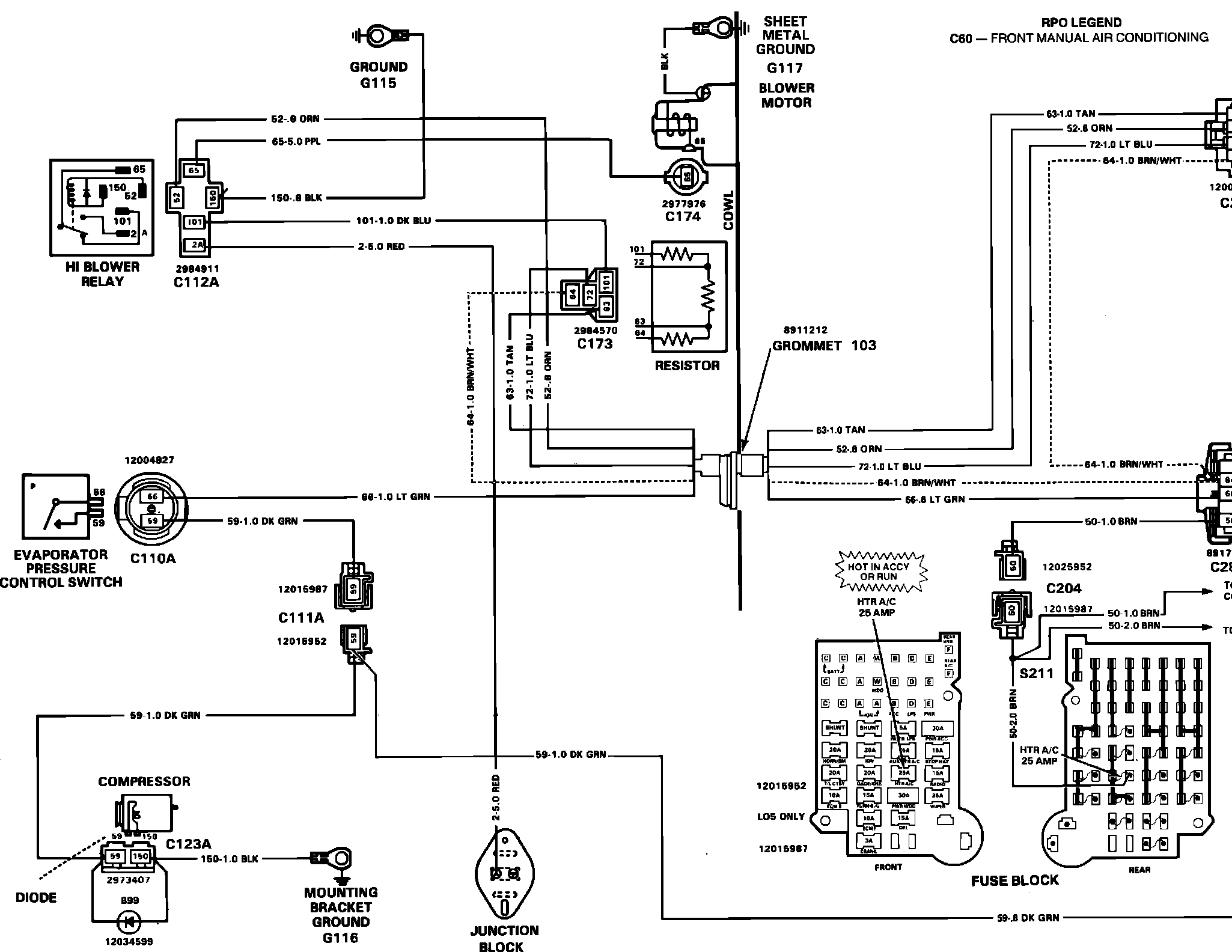

;��9Air Conditioning (Front Mounted):
